THK
High-precision ball screws and linear guides
Processing Capacity
Chuck size
8 in (200 mm)
Max. swing diameter over bed
ø21.7" (ø550 mm)
Max. swing diameter over carriage
ø11.4 in (ø290 mm) (with Y axis: ø7.9 in (ø200 mm))
Max. workpiece length
19.7 in (500 mm) (with Y axis: 20.9 in (530 mm), with Counter Spindle: 17.7 in (450 mm))
Max. workpiece diameter
ø15" (ø380 mm)
.png)
Spindle
Max. speed
4000 rpm
Spindle nose
A2-6
Spindle bore diameter
ø2.5" (ø63 mm)
Through spindle bore diameter
ø2" (ø52 mm)
Spindle power
11/15kW
Min. C-axis indexing
0.001°
Counter Spindle
Chuck size
6 in (150 mm)
Rate speed / Max speed
1750/6000rpm
Spindle nose
A2-5
Spindle bore diameter
ø2.2" (ø56 mm)
Through spindle bore diameter
ø1.8" (ø45 mm)
Spindle power
11kW
Travels
20.9" (530 mm)
Rapid traverse
1181.1ipm (30m/min)
Tool Holder
Type
Power Turret
Tools
12
Min. Tool to Tool
0.2s
Max. Tool to Tool
0.5s
Max tool shank size
0.98x0.98" (25x25 mm)
Max tool shank diameter
ø1.6" (ø40 mm)
Max. Live Tooling Speed
5000rpm
Live Tooling Model
BMT55
Travels
X Rapid traverse
1181.1ipm (30m/min)
Z Rapid traverse
1181.1ipm (30m/min)
Y Rapid traverse
590.6ipm (15m/min)
X Travels
7.48+0.39 in (190+10 mm)
Z Travels
21.7 in (550 mm) (with Y axis: 19.3+-1.97 in (490+-50mm))
Tail Stock
Travels from Tail Stock to Chuck
18.3 in (465 mm) (with Y axis: 19.7 in (500 mm))
Tail Stock Rapid Traverse
1181.1ipm (30m/min)
Sleeve taper
MT4
Dimensions and Weight
Dimensions (LxWxH)
98.4 × 67.7 × 68.5 in (2500 × 1720 × 1740 mm) (with Y axis: 105.5 × 68.9 × 72.8 in (2680 × 1750 × 1850 mm), with Counter Spindle: 105.5 × 68.9 × 72.8 in (2680 × 1750 × 1850 mm))
Net Weight
8818lb (4000kg)

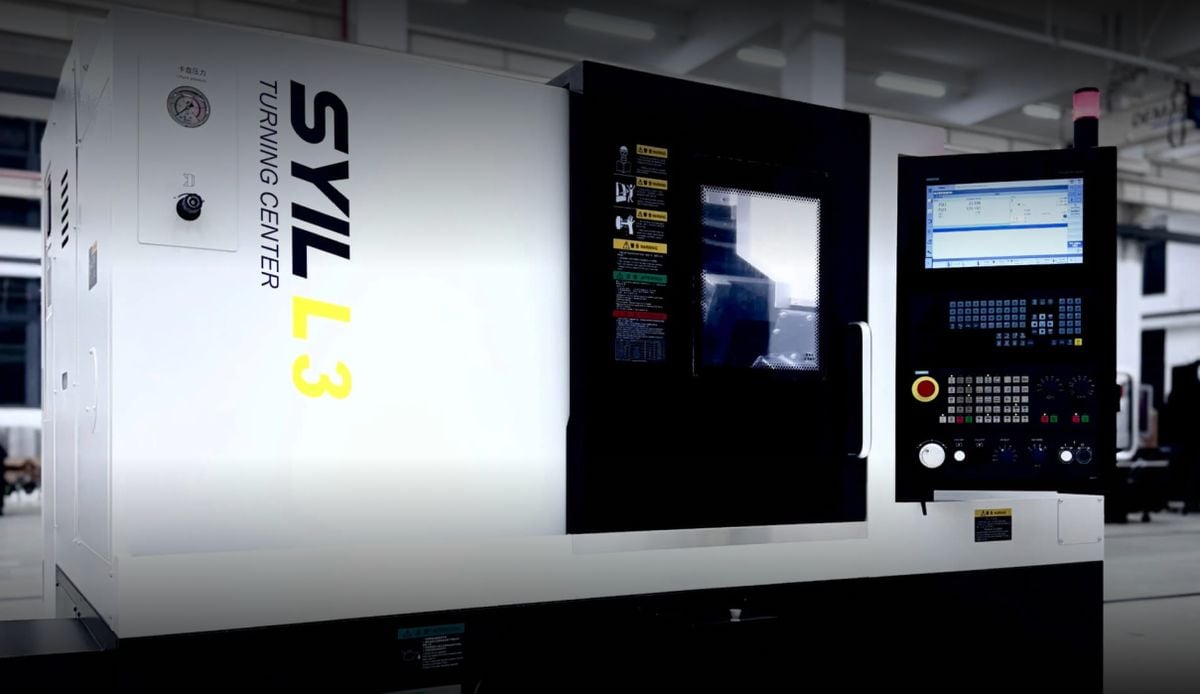

The High Productivity Lathe
The SYIL L3 turning center with live tooling for high performanceCNC machining of small and medium-sized workpieces.
.png)

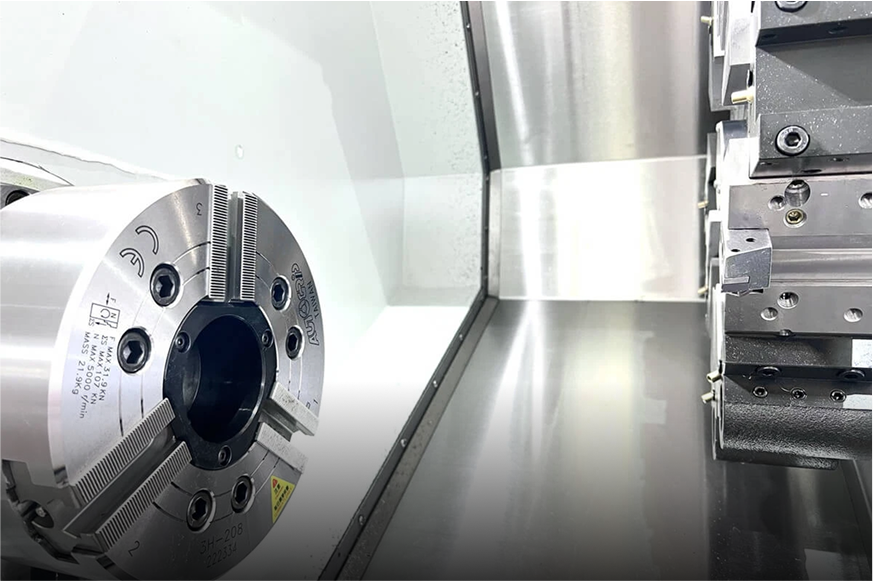

High-speed Servo Spindle Unit
Maximum spindle speed 4000 rpm
SYIL L3 Options

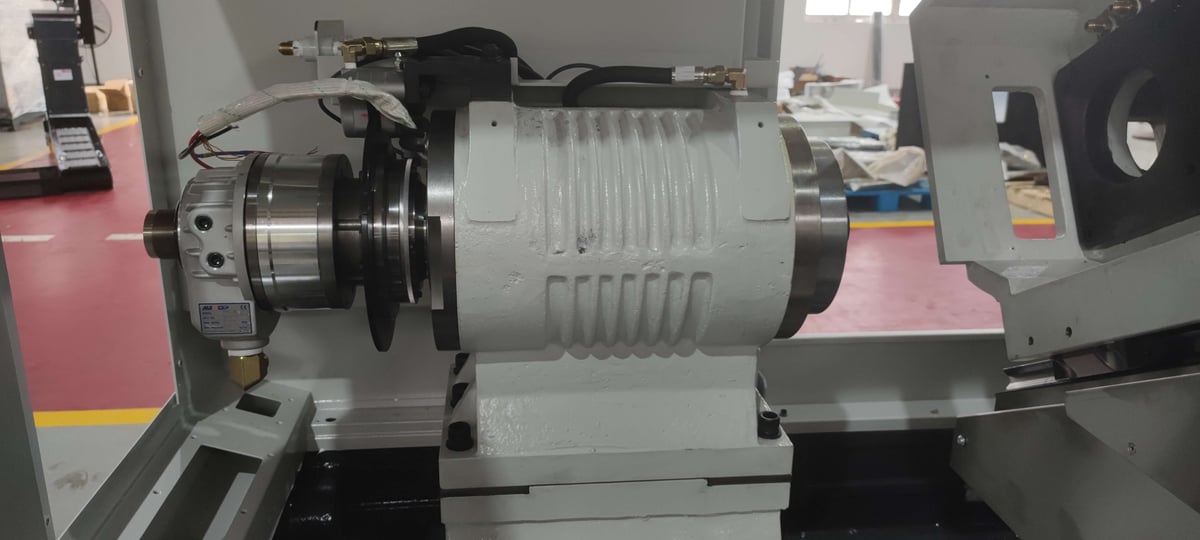

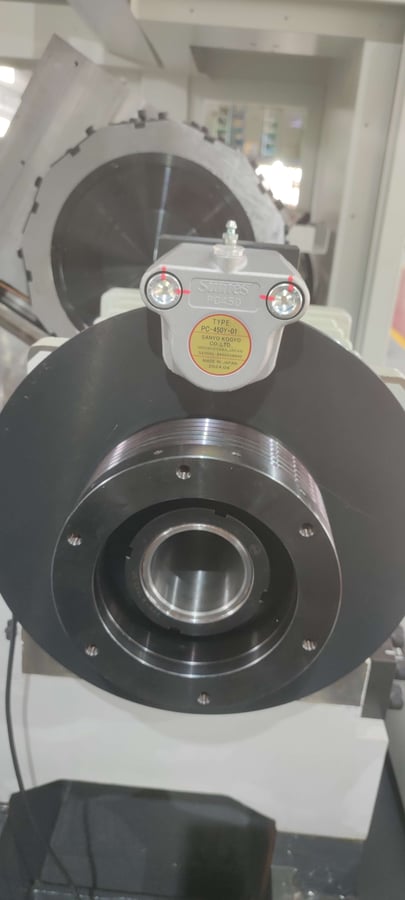

150mm Sub Spindle Chuck, 6000RPM.

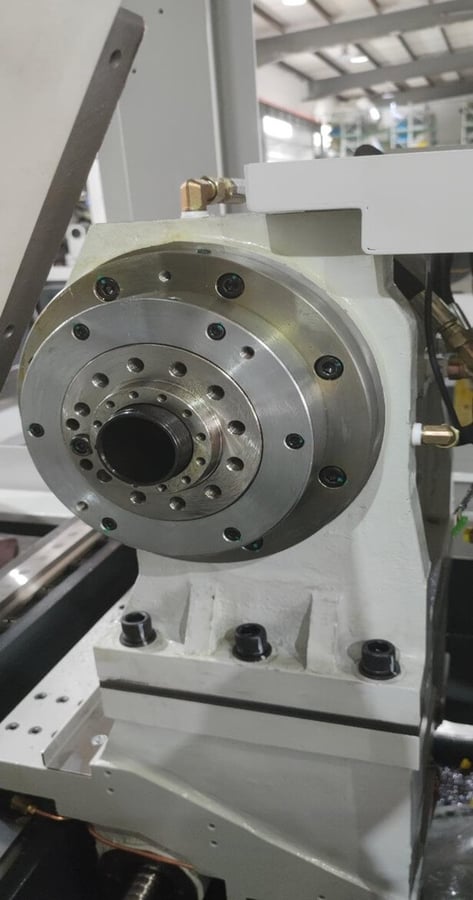

Including Custom Screen for Tail Stock Movement.

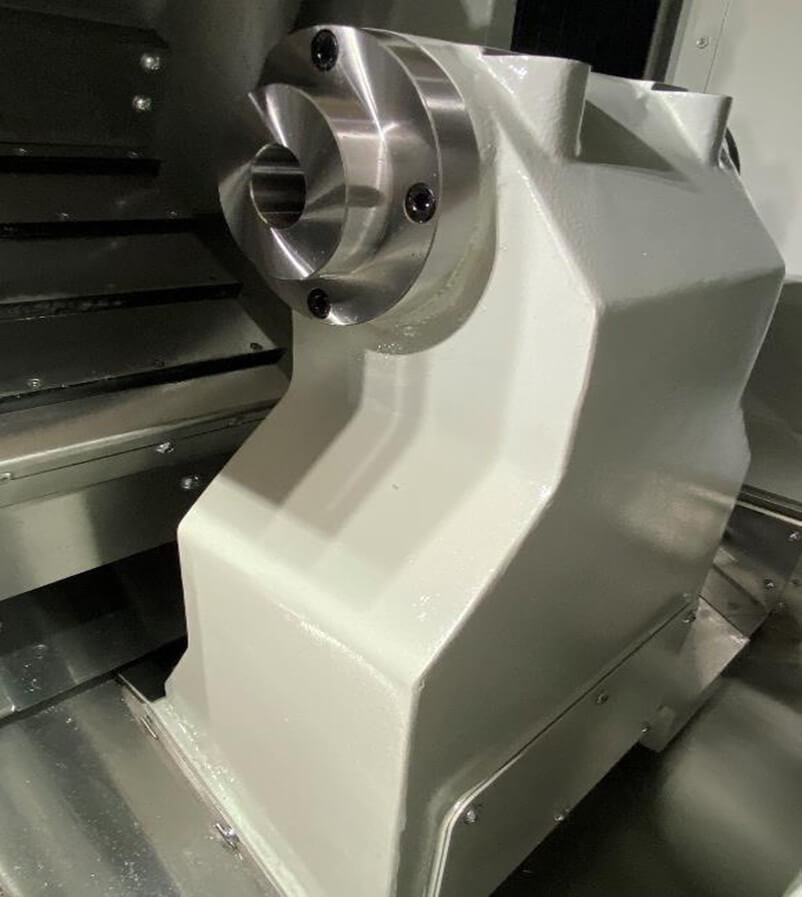

Programmable Tail Stock Including Custom Screen.

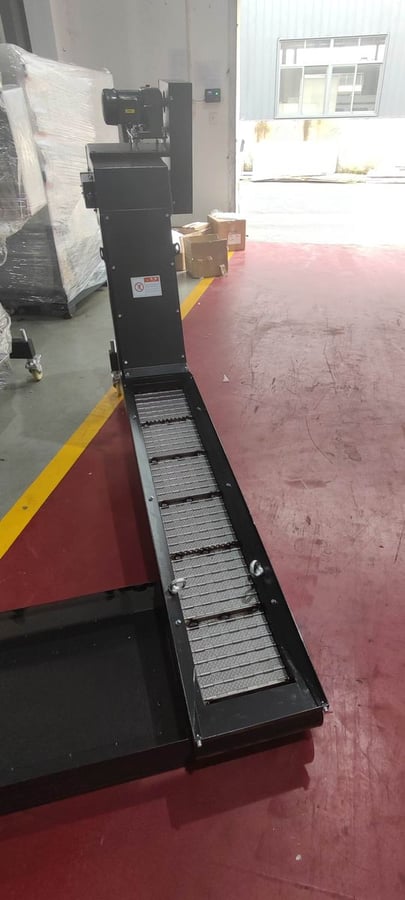

incl. chip pickup trolley.

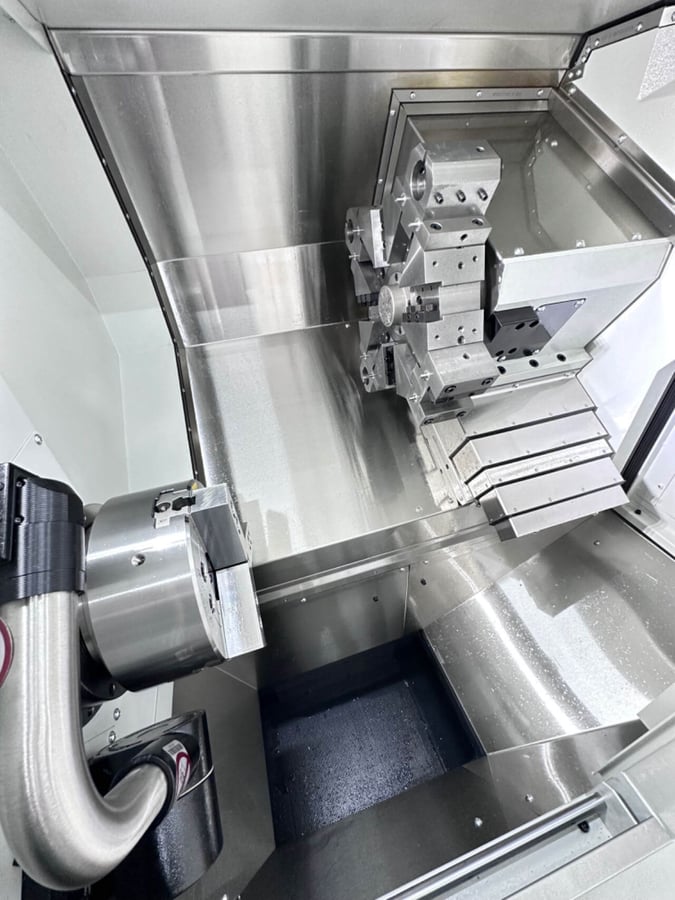

Renishaw.
for the L3.

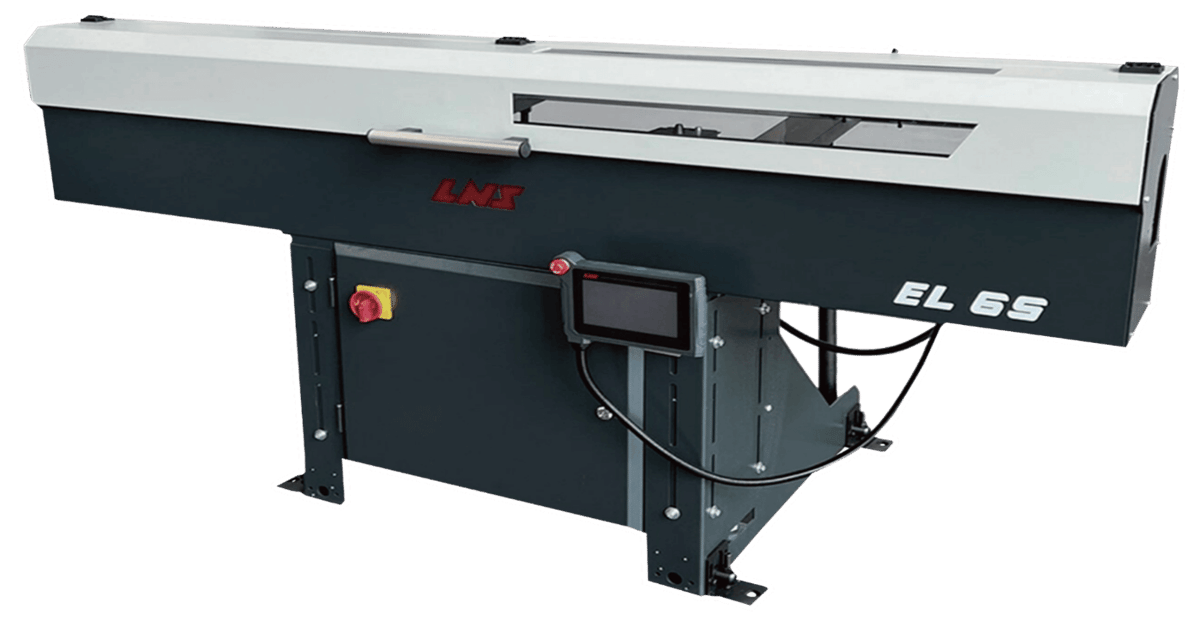

LNS EL65.
L3.
Technical Specifications
L2
L3
L4
Processing capacity
Chuck size (")
Chuck size (")
8
8
8
8
10
10
Max. swing diameter over bed (mm)
Max. swing diameter over bed (in)
ø510
ø20.08
ø550
ø21.65
ø630
ø24.80
Max. swing diameter over carriage (mm)
Max. swing diameter over carriage (in)
ø260
ø10.24
ø290 (with Y axis: 200)
ø11.42 (with Y axis: 7.87)
ø330
ø12.99
Max. workpiece length (mm)
Max. workpiece length (in)
300
11.81
500 (with Y axis: 530, with Counter Spindle: 450)
19.69 (with Y axis: 20.87, with Counter Spindle: 17.72)
800/1100/1500
31.50/43.31/59.06
Max. work piece diameter (mm)
Max. work piece diameter (in)
ø380
ø14.96
ø380
ø14.96
ø520
ø20.47
Spindle
Max. speed (rpm)
Max. speed (rpm)
4000
4000
4000
4000
3500
3500
Spindle nose
Spindle nose
A2-6
A2-6
A2-6
A2-6
A2-8
A2-8
Spindle bore diameter (mm)
Spindle bore diameter (in)
ø66
ø2.60
ø63
ø2.48
ø91
ø3.58
Through spindle bore diameter (mm)
Through spindle bore diameter (in)
ø52
ø2.05
ø52
ø2.05
ø75
ø2.95
Spindle power (kW)
Spindle power (hp)
11/15
14.75/20.11
11/15
14.75/20.11
15/18.5
20.11/24.81
Minimum C-axis indexing (°)
Minimum C-axis indexing (°)
0.001
0.001
Counter spindle
Chuck size (")
Chuck size (")
6
6
Rate speed / Max. speed (rpm)
Rate speed / Max. speed (rpm)
1750/6000
1750/6000
Spindle nose
Spindle nose
A2-5
A2-5
Spindle bore diameter (mm)
Spindle bore diameter (in)
ø56
ø2.21
Through spindle bore diameter (mm)
Through spindle bore diameter (in)
ø45
ø1.77
Spindle power (kW)
Spindle power (hp)
11
14.75
Travels (mm)
Travels (in)
530
20.87
Rapid traverse (m/min)
Rapid traverse (in/min)
30
1181.1
Travels
X Rapid traverse (m/min)
X Rapid traverse (in/min)
30
1181.1
30
1181.1
30
1181.1
Z Rapid traverse (m/min)
Z Rapid traverse (in/min)
30
1181.1
30
1181.1
30
1181.1
Y Rapid traverse (m/min)
Y Rapid traverse (in/min)
15
590.6
X Travels (mm)
X Travels (in)
200
7.87
190+10
7.48+0.39
260+10
10.24+0.39
Z Travels (mm)
Z Travels (in)
360
14.17
550 (with Y axis: 490+-50)
21.65 (with Y axis: 19.29+-1.97)
850/1150/1550
33.46/45.28/61.02
Tool holder
Type
Type
Servo turret
Servo turret
Power Turret
Power Turret
Servo Turret
Servo Turret
Tools
Tools
8/12
8/12
12
12
12
12
Tool shank size (mm)
Tool shank size (in)
25×25
0.98×0.98
25×25
0.98×0.98
25×25
0.98×0.98
Tool shank diameter (mm)
Tool shank diameter (in)
ø40
ø1.57
ø40
ø1.57
ø40
ø1.57
Min. Tool to Tool (s)
Min. Tool to Tool (s)
0.28
0.28
0.2
0.2
0.2
0.2
Max. Tool to Tool (s)
Max. Tool to Tool (s)
0.4
0.4
0.5
0.5
0.5
0.5
Max. Live Tooling Speed (rpm)
Max. Live Tooling Speed (rpm)
5000
5000
5000
5000
Live Tooling Model
Live Tooling Model
BMT55
BMT55
BMT55
BMT55
Tail stock
Travels from Tail Stock to Chuck (mm)
Travels from Tail Stock to Chuck (in)
465 (with Y axis: 500)
18.31 (with Y axis: 19.69)
Tail Stock Rapid Traverse (m/min)
Tail Stock Rapid Traverse (in/min)
30
1181.1
10
393.7
Sleeve taper
Sleeve taper
MT4
MT4
MT5
MT5
Other data
Machine weight (kg)
Machine weight (lb)
3050
6724
4000
8818
6200/6800/7220
13669/14991/15917
Machine dimensions
Machine dimensions
L × W × H (mm)
L × W × H (in)
1775×1600×1690
69.88×62.99×66.54
2500×1720×1740
98.43×67.72×68.50
(3522/3872/3992)×1982×1772
(138.66/152.44/157.17)×78.03×69.76
with Y axis (mm)
with Y axis (in)
2680×1750×1850
105.51×68.90×72.83
with Counter Spindle (mm)
with Counter Spindle (in)
2680×1750×1850
105.51×68.90×72.83
Technical Specifications
L2
L3
L4
Processing Capacity
Chuck size
8 inch
8 inches
10 inches
Max. swing diameter over bed
ø510 mm
ø550 mm
ø630 mm
Max. swing diameter over carriage
ø260mm
ø290mm (with Y axis: 200mm)
ø330 mm
Max. workpiece Length
300mm
500mm (with Y axis: 530mm, with Counter Spindle: 450mm)
800 mm (1100 mm/ 1500mm)
Max. work piece diameter
ø380mm
ø380mm
ø520mm
Spindle
Max speed
4000rpm
4000rpm
3500 rpm
Spindle nose
A2-6
A2-6
A2-8
Spindle bore diameter
ø66mm
ø63mm
ø91mm
Through spindle bore diameter
ø52mm
ø52mm
ø75mm
Spindle power
11/15kW
11/15kW
15/18.5 kW
Min. C-axis indexing
--
0.001°
--
Counter Spindle
Chuck size
--
6 inches
--
Rate speed / Max speed
--
1750/6000rpm
--
Spindle nose
--
A2-5
--
Spindle bore diameter
--
ø56mm
--
Through spindle bore diameter
--
ø45mm
--
Spindle power
--
11kW
--
Travels
--
530 mm
--
Rapid traverse
--
30m/min
--
Tool Holder
Type
Servo turret
Power Turret
Servo Turret
Tools
8/12
12
12
Tool shank size
25x25/20x20mm
25x25mm
25x25mm
Tool shank diameter
ø40/ø32mm
ø40mm
ø40mm
Min. Tool to Tool
--
0.2 seconds
0.2s
Max. Tool to Tool
--
0.5s
0.5s
Max. Live Tooling Speed
--
5000rpm
5000rpm
Live Tooling Model
--
BMT55
BMT55
Travels
X Rapid traverse
30m/min
30m/min
30m/min
Z Rapid traverse
30m/min
30m/min
30m/min
Y Rapid traverse
--
15m/min
--
X Travels
200mm
190+10mm
260+10 mm
Z Travels
360mm
550mm (with Y axis: 490+-50mm)
850mm (1150 mm/ 1550 mm)
Tail Stock
Travels from Tail Stock to Chuck
--
465mm (with Y axis: 500mm)
--
Tail Stock Rapid Traverse
--
30m/min
10m/min
Sleeve taper
--
MT4
MT5
Accuracy
Finish turning cylindrical accuracy
IT6
IT6
IT6
Finish turning parts surface
Ra0.4-1.6
Ra0.4-1.6
Ra0.4-1.6
Finished turning parts roundness
≤0.003mm
≤0.003mm
≤0.003mm
Position accuracy(X)
0.005mm
0.005mm
0.005mm
Position accuracy(Z)
0.008mm
0.008mm
0.008mm
Repeat accuracy (X)
0.002mm
0.002mm
0.002mm
Repeat accuracy(Z)
0.004mm
0.004mm
0.004mm
Dimensions and Weight
Dimensions(LxWxH)
1775x1600x1690mm
2500x1720x1740mm (with Y axis: 2680x1750x1850mm, with Counter Spindle: 2680x1750x1850mm)
2500x1720x1740 mm
N.W.
3050kg
4000kg
6200 kg/ 6800 kg/ 7220 kg
