SYIL L Siemens SINUMERIK

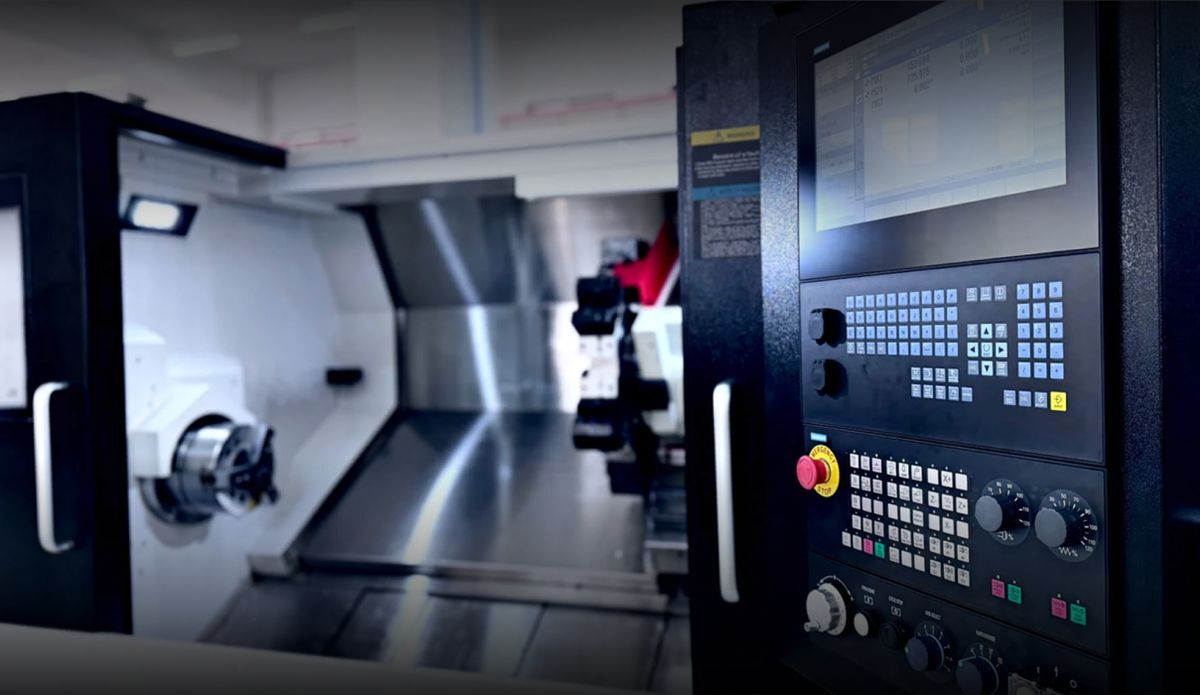

The SYIL L4 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.
.png?width=5760&name=Mask%20group%20(22).png)

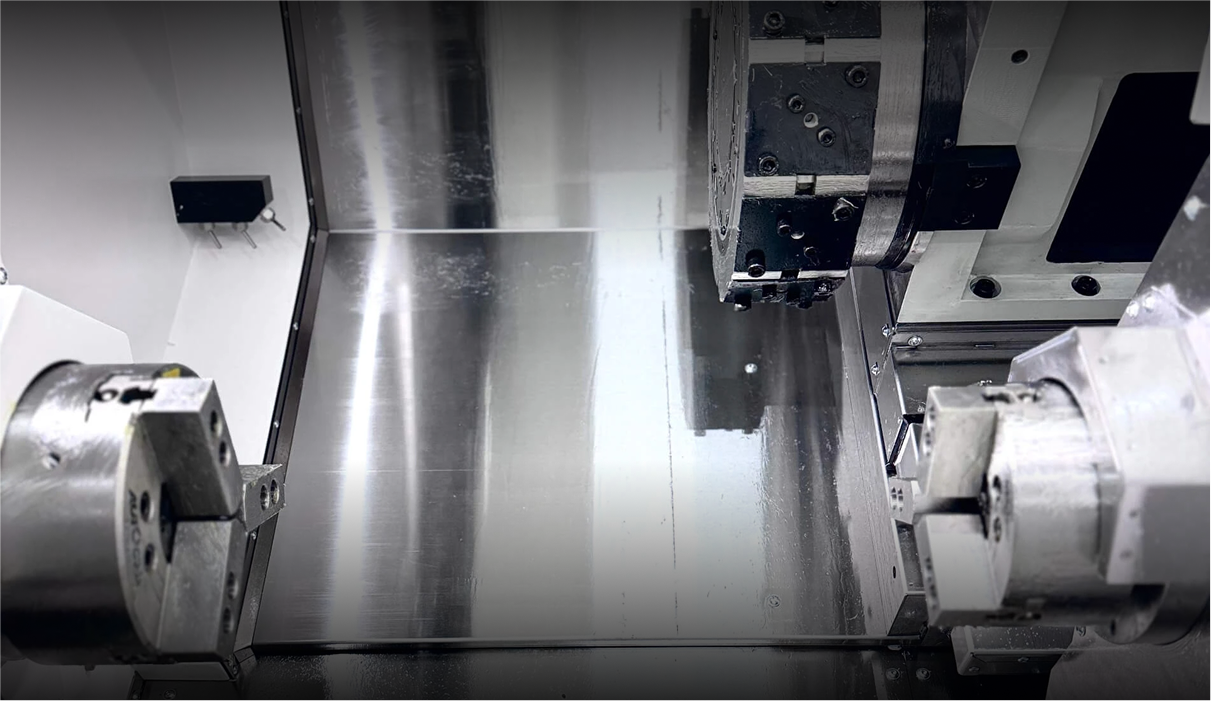

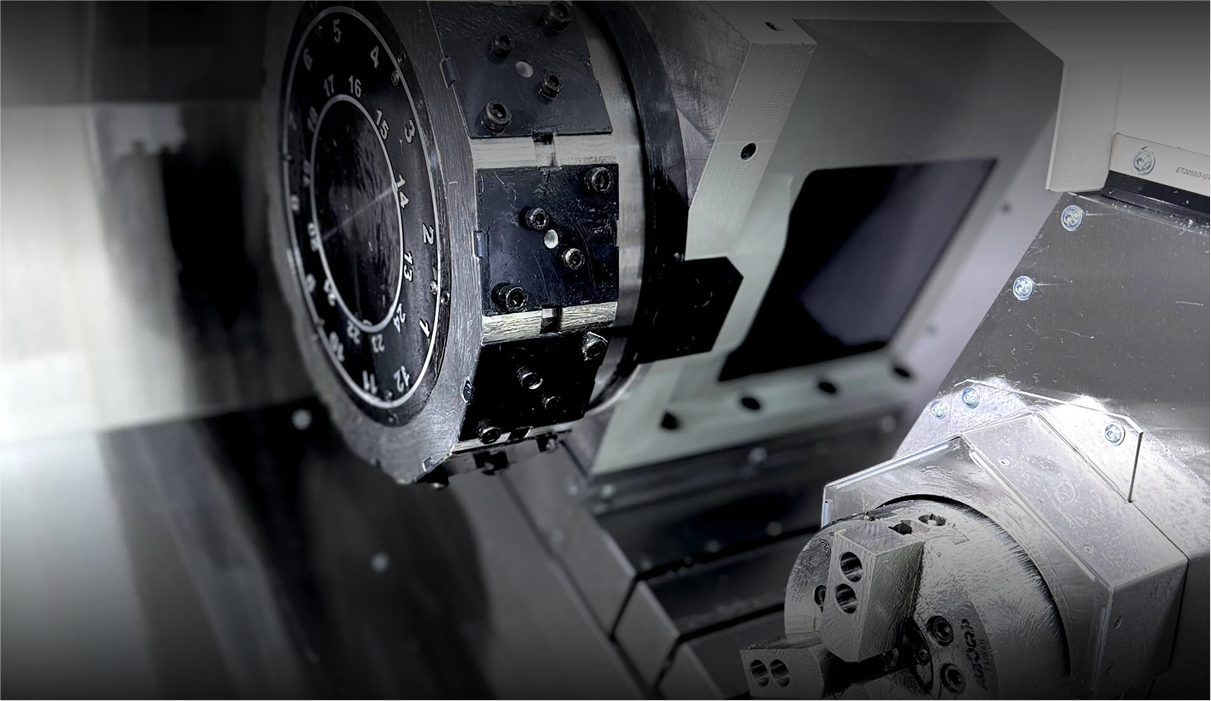

SYIL L4
The SYIL L Series high-performance turning centers are designed to deliver unparalleled setup flexibility, extreme rigidity, and exceptional thermal stability. These machines lead the industry in performance-to-price ratio, offering unbeatable value in their class.

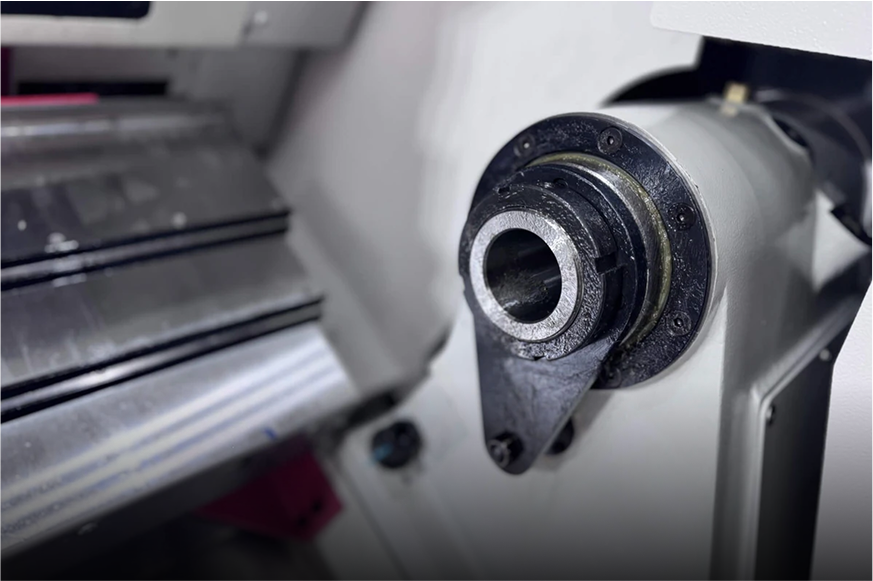

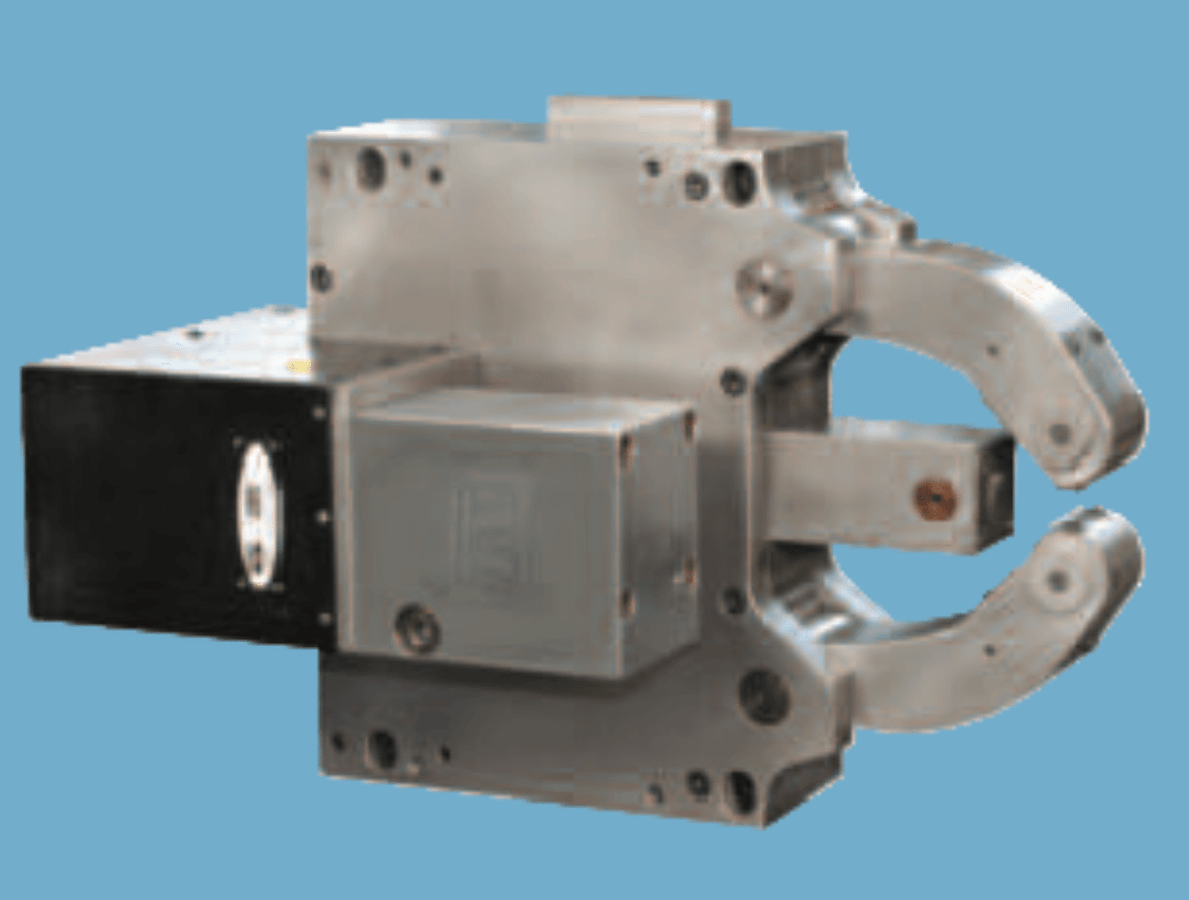

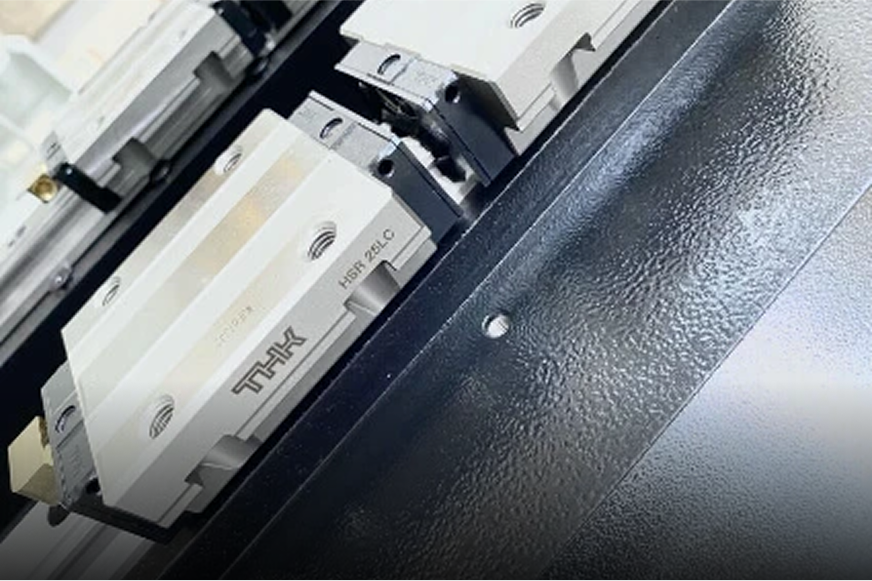

SYIL L4 Core Features

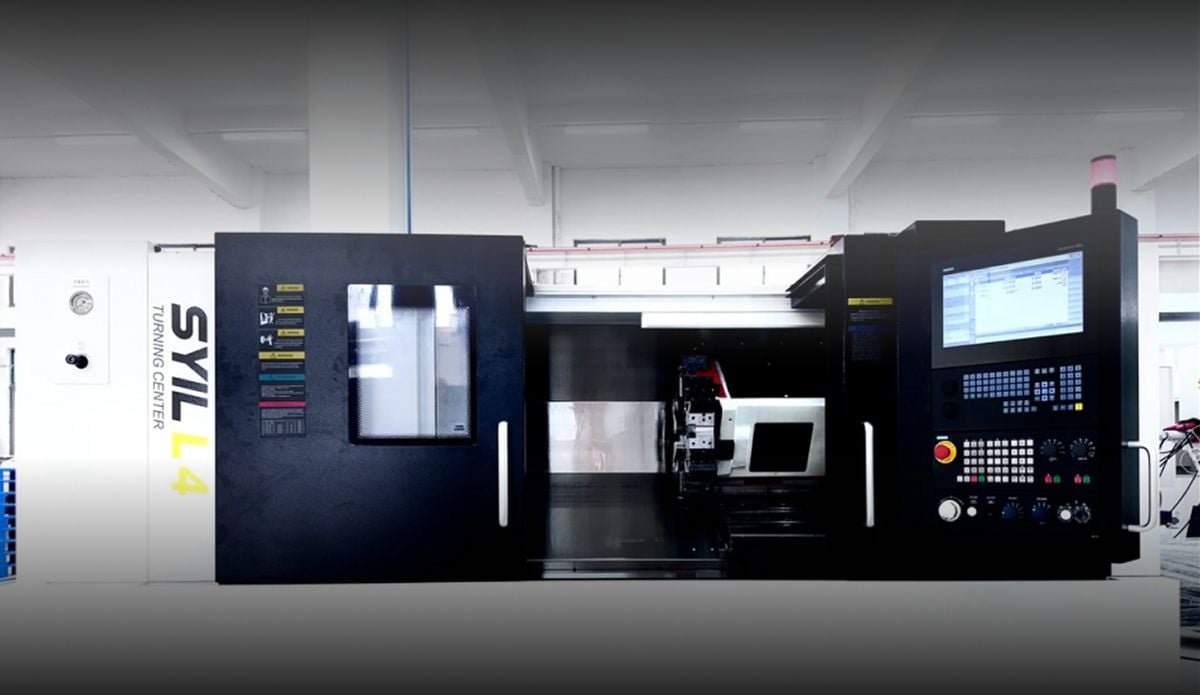

SYIL L4 turning center: high-performance CNC machining of large parts.
.png?width=5760&name=Mask%20group%20(58).png)
Technical Specifications
L2
L3
L4
Processing capacity
Chuck size (")
Chuck size (")
8
8
8
8
10
10
Max. swing diameter over bed (mm)
Max. swing diameter over bed (in)
ø510
ø20.08
ø550
ø21.65
ø630
ø24.80
Max. swing diameter over carriage (mm)
Max. swing diameter over carriage (in)
ø260
ø10.24
ø290 (with Y axis: 200)
ø11.42 (with Y axis: 7.87)
ø330
ø12.99
Max. workpiece length (mm)
Max. workpiece length (in)
300
11.81
500 (with Y axis: 530, with Counter Spindle: 450)
19.69 (with Y axis: 20.87, with Counter Spindle: 17.72)
800/1100/1500
31.50/43.31/59.06
Max. work piece diameter (mm)
Max. work piece diameter (in)
ø380
ø14.96
ø380
ø14.96
ø520
ø20.47
Spindle
Max. speed (rpm)
Max. speed (rpm)
4000
4000
4000
4000
3500
3500
Spindle nose
Spindle nose
A2-6
A2-6
A2-6
A2-6
A2-8
A2-8
Spindle bore diameter (mm)
Spindle bore diameter (in)
ø66
ø2.60
ø63
ø2.48
ø91
ø3.58
Through spindle bore diameter (mm)
Through spindle bore diameter (in)
ø52
ø2.05
ø52
ø2.05
ø75
ø2.95
Spindle power (kW)
Spindle power (hp)
11/15
14.75/20.11
11/15
14.75/20.11
Minimum C-axis indexing (°)
Minimum C-axis indexing (°)
0
Counter spindle
Chuck size (")
Chuck size (")
6
6
Rate speed / Max. speed (rpm)
Rate speed / Max. speed (rpm)
1750/6000
1750/6000
Spindle nose
Spindle nose
A2-5
A2-5
Spindle bore diameter (mm)
Spindle bore diameter (in)
ø56
ø2.21
Through spindle bore diameter (mm)
Through spindle bore diameter (in)
ø45
ø1.77
Spindle power (kW)
Spindle power (hp)
11
14.75
Travels (m)
Travels (in)
530
20.87
Rapid traverse (m/min)
Rapid traverse (in/min)
30
30
Travels
X Rapid traverse (m/min)
X Rapid traverse (in/min)
30
1181.1
30
1181.1
30
1181.1
Z Rapid traverse (m/min)
Z Rapid traverse (in/min)
30
1181.1
30
1181.1
30
1181.1
Y Rapid traverse (m/min)
Y Rapid traverse (in/min)
15
590.6
X Travels (mm)
X Travels (in)
200
7.87
190+10
7.48+0.39
260+10
10.24+0.39
Z Travels (mm)
Z Travels (in)
360
14.17
550 (with Y axis: 490+-50)
21.65 (with Y axis: 19.29+-1.97)
850/1150/1550
33.46/45.28/61.02

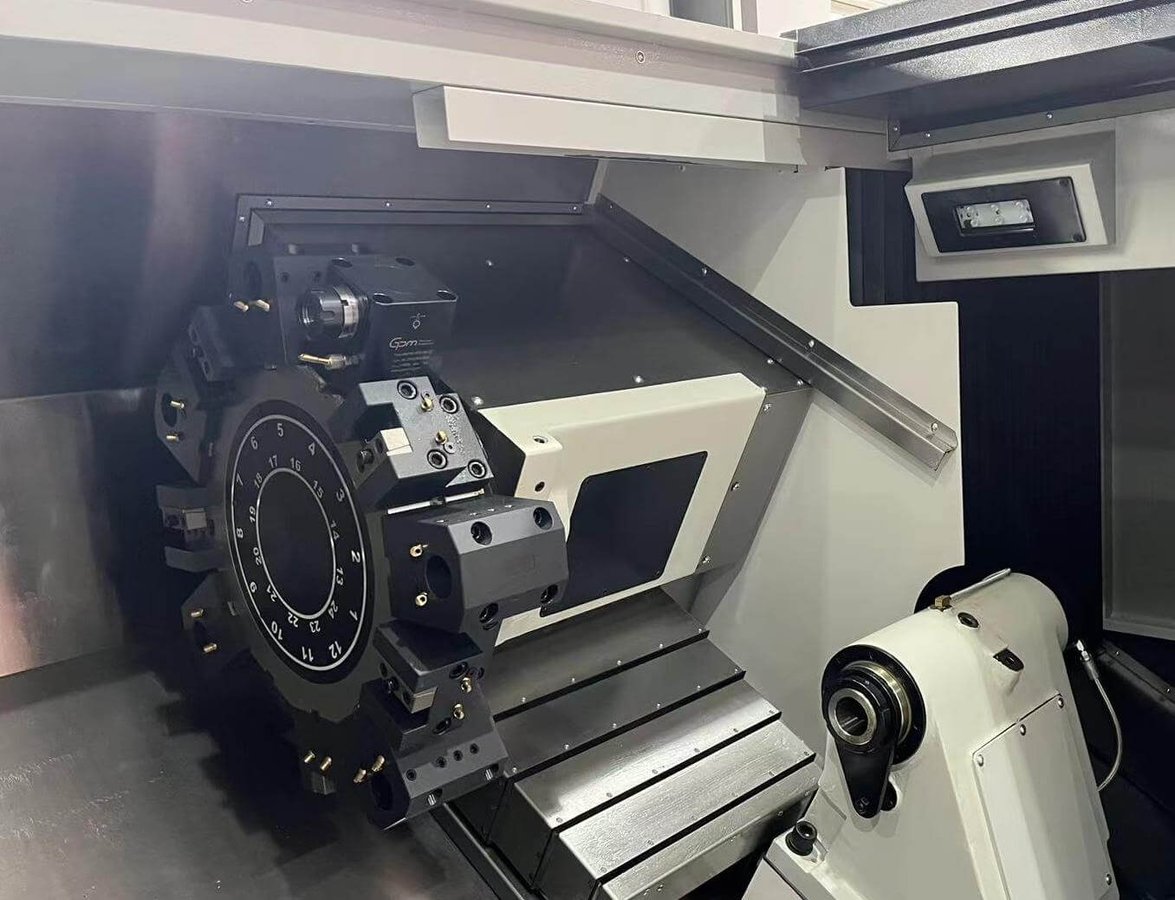

Tool holder
Type
Type
Servo turret
Servo turret
Power Turret
Power Turret
Servo Turret
Servo Turret
Tools
Tools
8/12
8/12
12
12
12
12
Tool shank size (mm)
Tool shank size (in)
25×25
0.98×0.98
25×25
0.98×0.98
25×25
0.98×0.98
Tool shank diameter (mm)
Tool shank diameter (in)
ø40
ø1.57
ø40
ø1.57
ø40
ø1.57
Min. Tool to Tool (s)
Min. Tool to Tool (s)
0.28
0.28
0.2
0.2
0.2
0.2
Max. Tool to Tool (s)
Max. Tool to Tool (s)
0.4
0.4
0.5
0.5
0.5
0.5
Max. Live Tooling Speed (rpm)
Max. Live Tooling Speed (rpm)
5000
5000
5000
5000
Live Tooling Model
Live Tooling Model
BMT55
BMT55
BMT55
BMT55
Tail stock
Travels from Tail Stock to Chunk (mm)
Travels from Tail Stock to Chunk (in)
465 (with Y axis: 500)
18.31 (with Y axis: 19.69)
Tail Stock Rapid Traverse (m/min)
Tail Stock Rapid Traverse (in/min)
30
1181.1
10
393.7
Sleeve taper
Sleeve taper
MT4
MT4
MT5
MT5
Accuracy
Finish turning cylindrical accuracy
Finish turning cylindrical accuracy
IT6
IT6
IT6
IT6
IT6
IT6
Finish turning parts surface
Finish turning parts surface
Ra 0.4-1.6
Ra 0.40-1.60
Ra 0.4-1.6
Ra 0.40-1.60
Ra 0.4-1.6
Ra 0.40-1.60
Finished turning parts roundness (mm)
Finished turning parts roundness (in)
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
Position accuracy Ｘ (mm)
Position accuracy Ｘ (in)
0.005
0.000197
0.005
0.000197
0.005
0.000197
Position accuracy Ｚ (mm)
Position accuracy Ｚ (in)
0.008
0.000315
0.008
0.000315
0.008
0.000315
Repeat accuracy Ｘ (mm)
Repeat accuracy Ｘ (in)
0.002
0.000079
0.002
0.000079
0.002
0.000079
Repeat accuracy Ｚ (mm)
Repeat accuracy Ｚ (in)
0.004
0.000157
0.004
0.000157
0.004
0.000157
Other data
Machine weight (kg)
Machine weight (lb)
3050
6724
4000
8818
6200/6800/7220
13669/14991/15917
Machine dimensions
Machine dimensions
L × W × H (mm)
L × W × H (in)
1775×1600×1690
69.88×62.99×66.54
2500×1720×1740
98.43×67.72×68.50
(3522/3872/3992)×1982×1772
(138.66/152.44/157.17)×78.03×69.76
with Y axis (mm)
with Y axis (in)
2680×1750×1850
105.51×68.90×72.83
with Counter Spindle (mm)
with Counter Spindle (in)
2680×1750×1850
105.51×68.90×72.83
