Schneeberger
Mineral casting machine frame

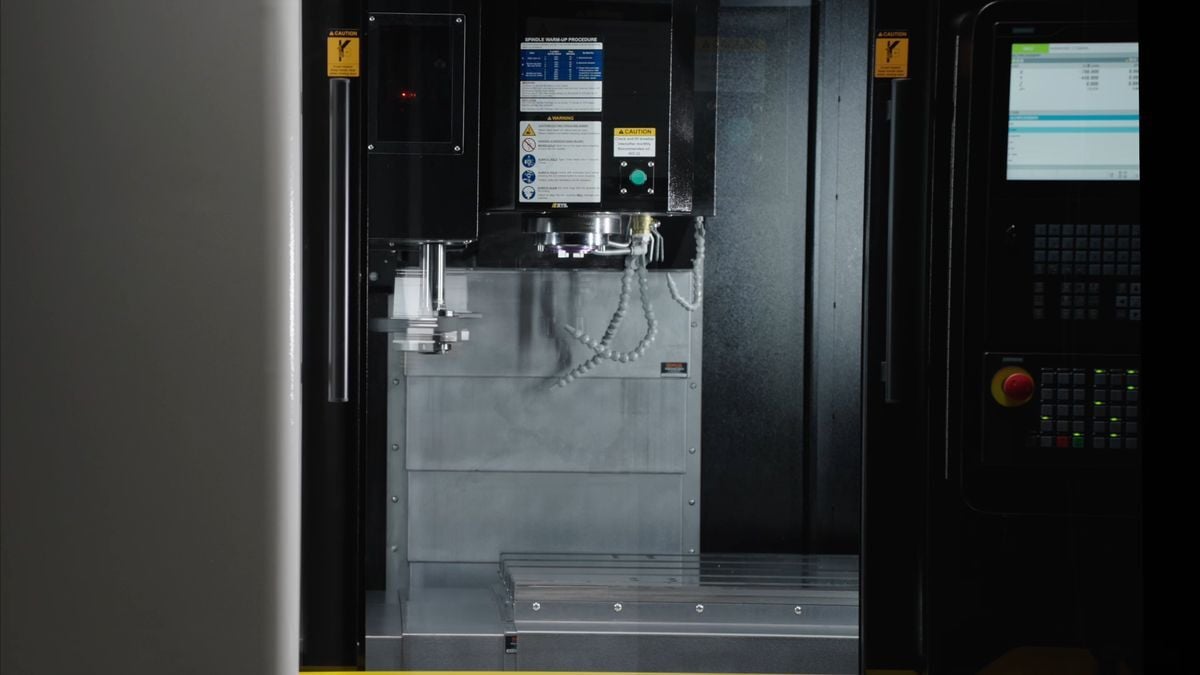

Travel
Longitudinal Travel X
29.9″ (760 mm)
Cross Travel Y
19.7" (500 mm)
Headstock Travel Z
19.7" (500 mm)
Distance between spindle end and tabletop
3.94–23.62" (100-600 mm)
Distance between spindle and column surface
20.9" (530 mm)
Table
Working surface
33.86 × 19.69" (860×500 mm)
T-Slots (Number x Size x Distance)
5 × 0.71 × 3.94" (5×18×100 mm)
Max. table load
1102.3 lb (500 kg)
Spindle
Spindle Nose
BT40
Spindle Speeds
10,000 rpm (12,000 rpm optional)
Mechanism of Transmission
Belt

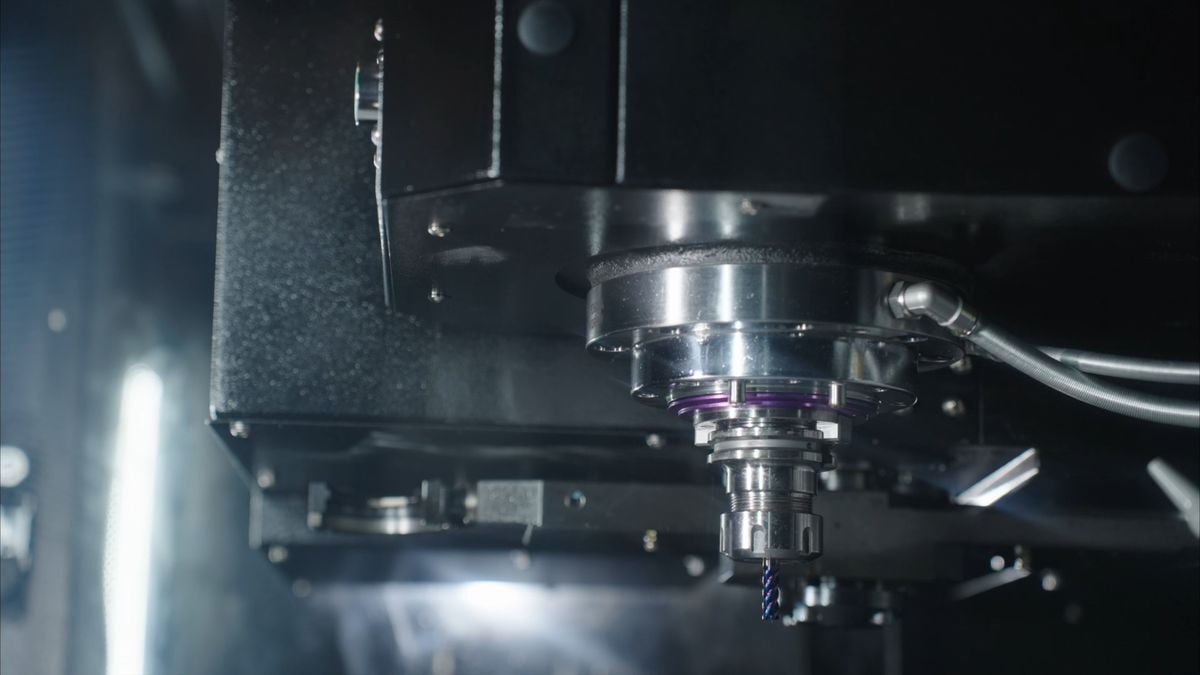

Feed
Cutting Feed
393.7 ipm (10,000 mm/min)
Rapid Traverse
1181.1 ipm (30,000 mm/min)

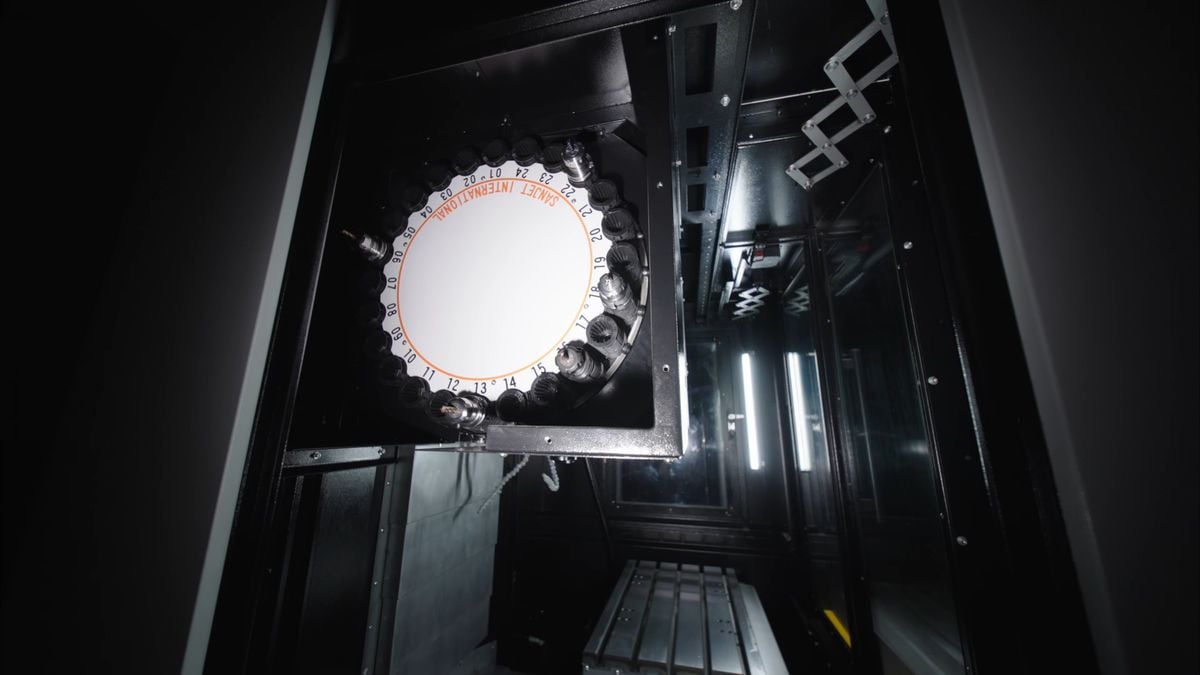

Auto Tool Changer
Tool Holder
Arm type
Tool Storage Capacity
24 pcs
Max. Tool Diameter
4.9" (125 mm)
Max. Tool Length
9.4" (240 mm)
Max. Tool Weight
15.4 lb (7 kg)
Tool to Tool
2.0 s
Motors
Spindle motor output
11/17 kW
Drive motors X, Y, Z Axis
3.9/3.9/5.9 kW
General
Floor space (L×W×H)
72.83 × 88.39 × 110.24" (1850×2245×2800 mm)
Weight
13,228 lb (6000 kg)

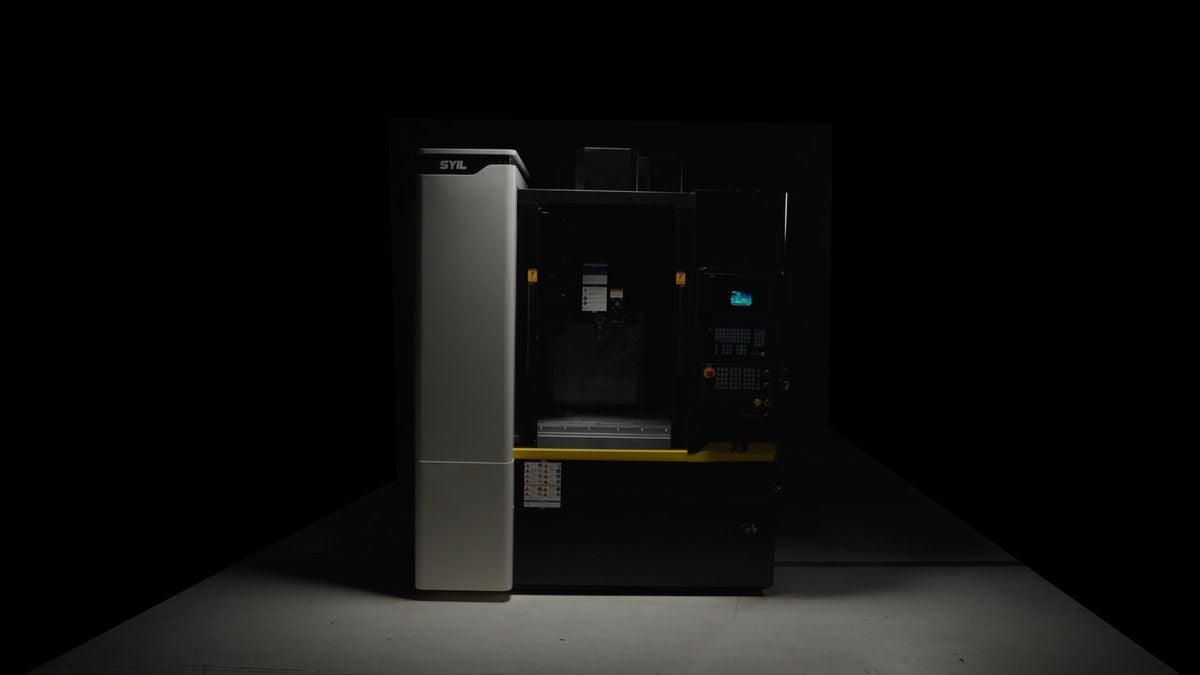

X9 Vertical Milling Machine
Excellent Machining Capabilities. Handling a Full Range of Operations.

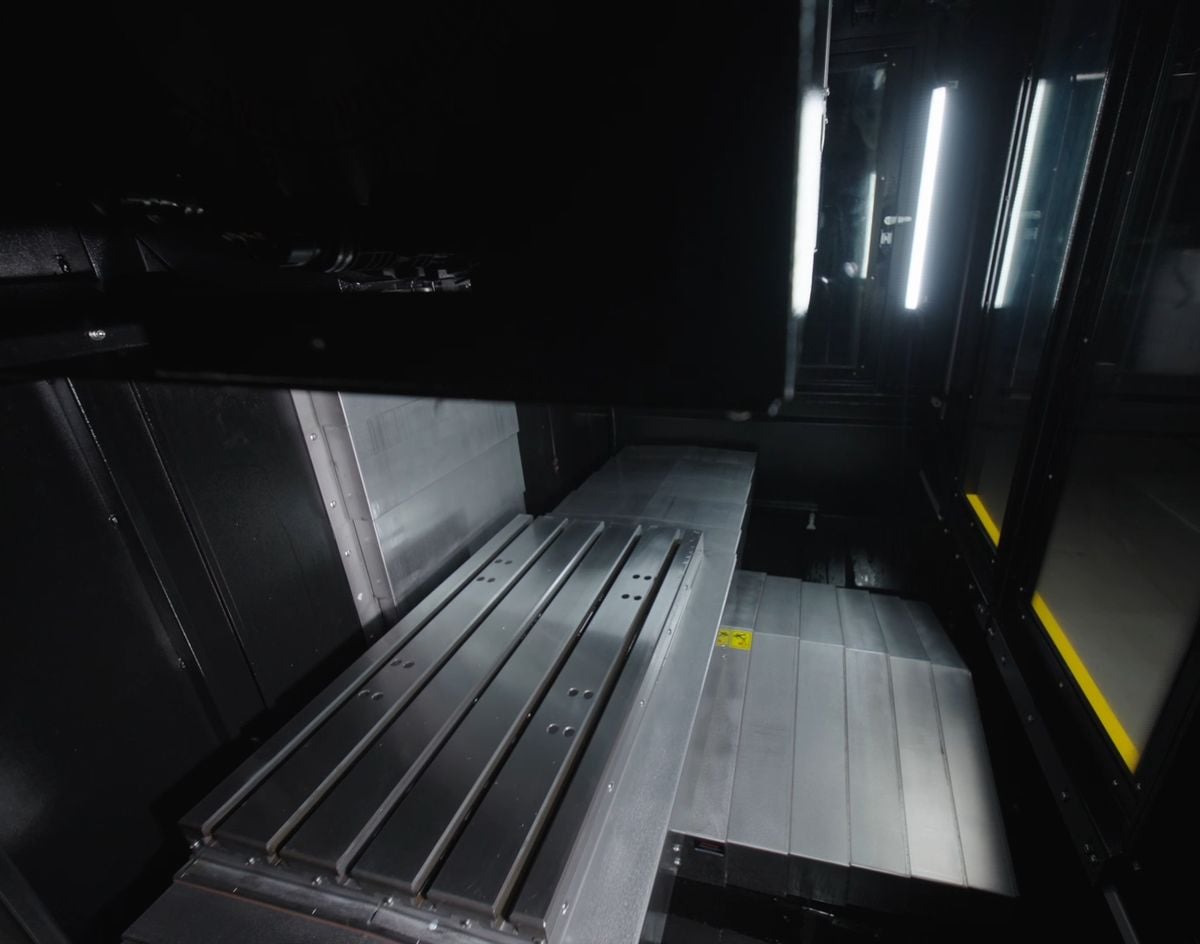

THK
High-precision ball screws and linear guides

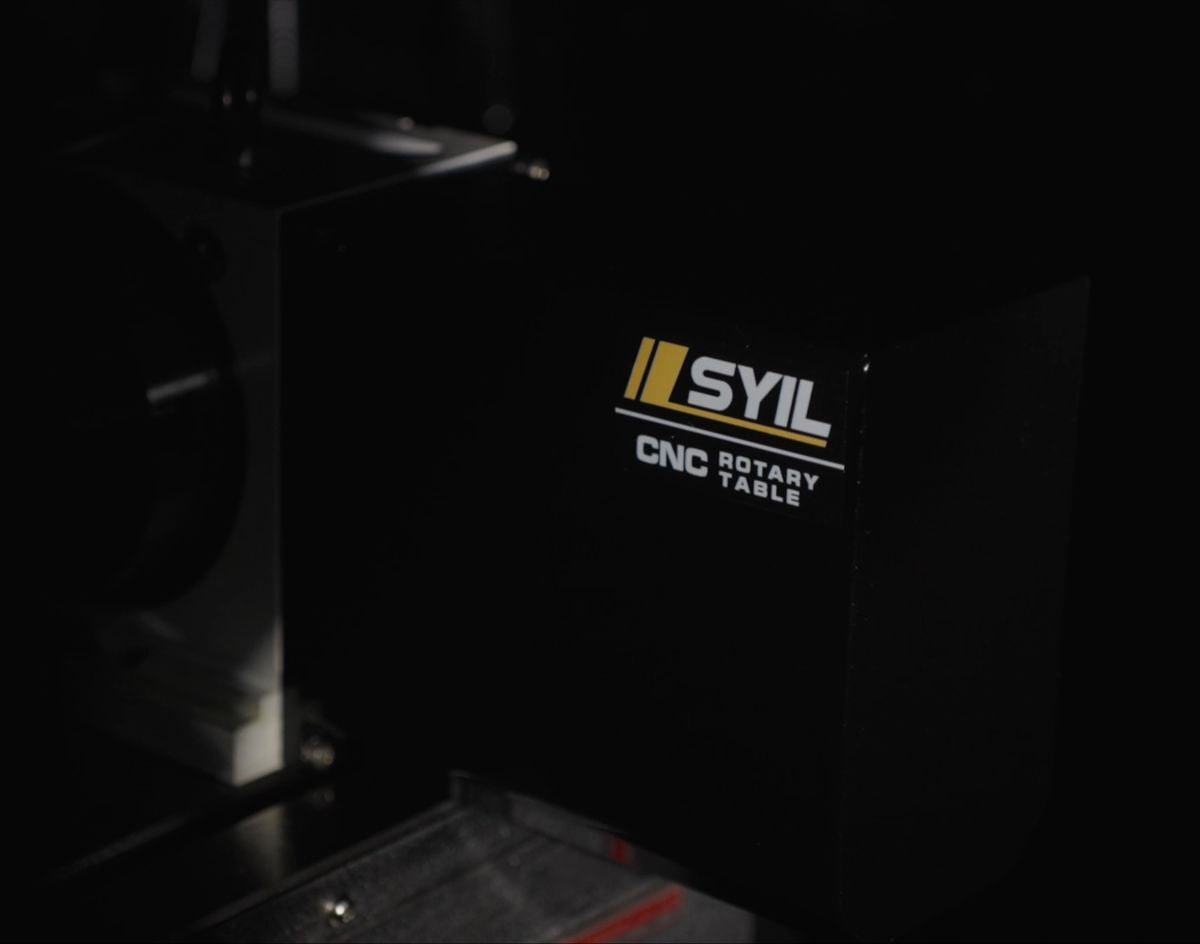

4th axis
Add a 4th axis to your 3-axis machining center

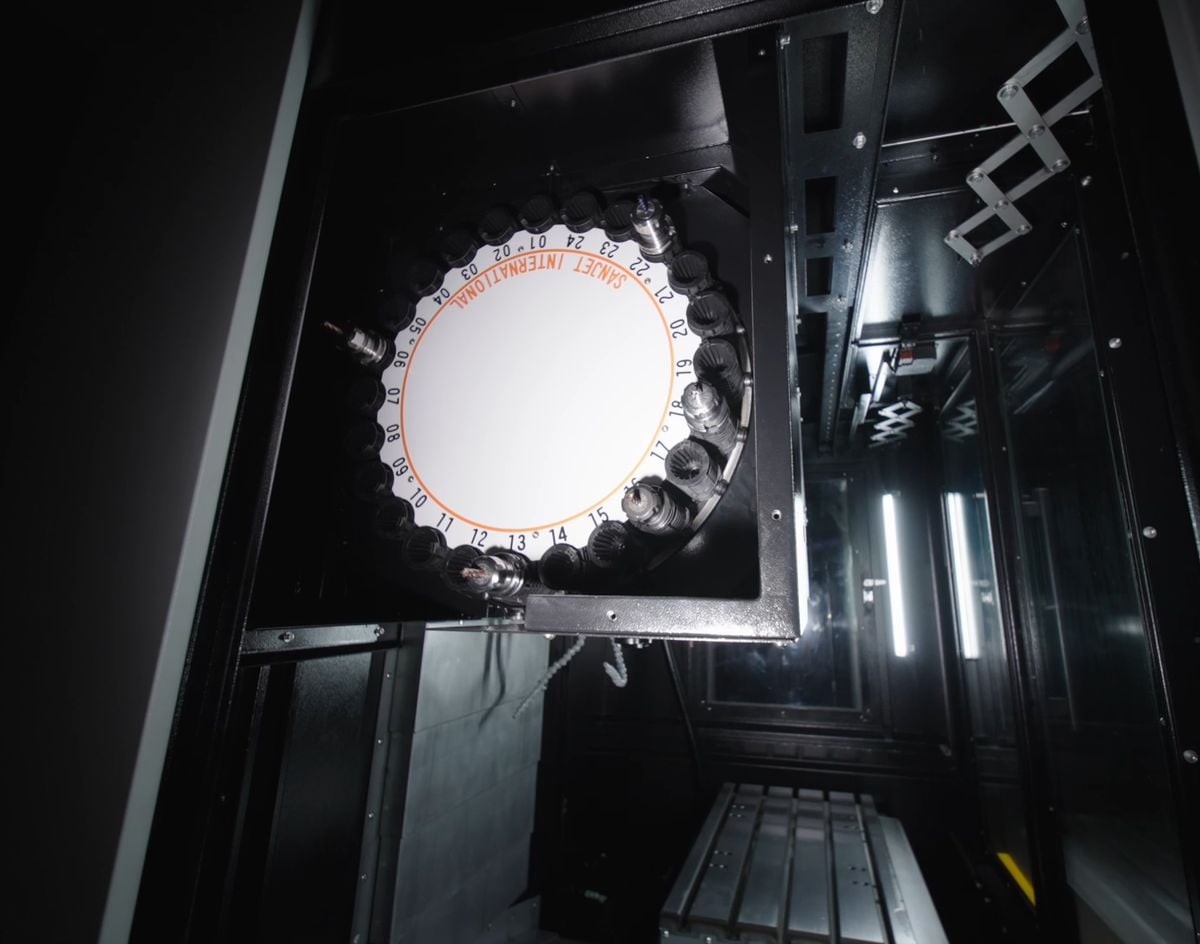

High-speed Servo Tool Changer
24 positions BT40
SYIL X9 Options

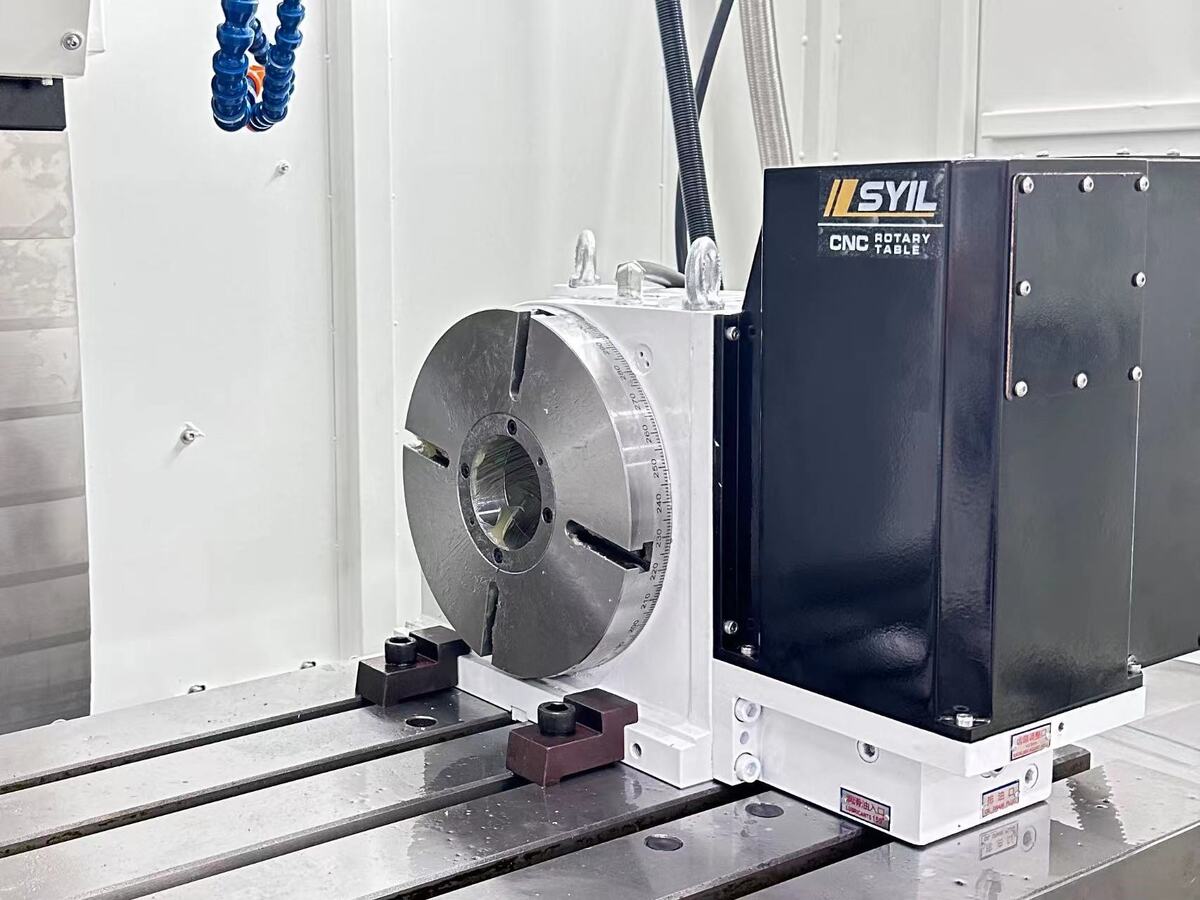

4th axis 255 mm.
for 255 mm NC rotary table.
Wireless type.
Cable type TTC200.
S800.

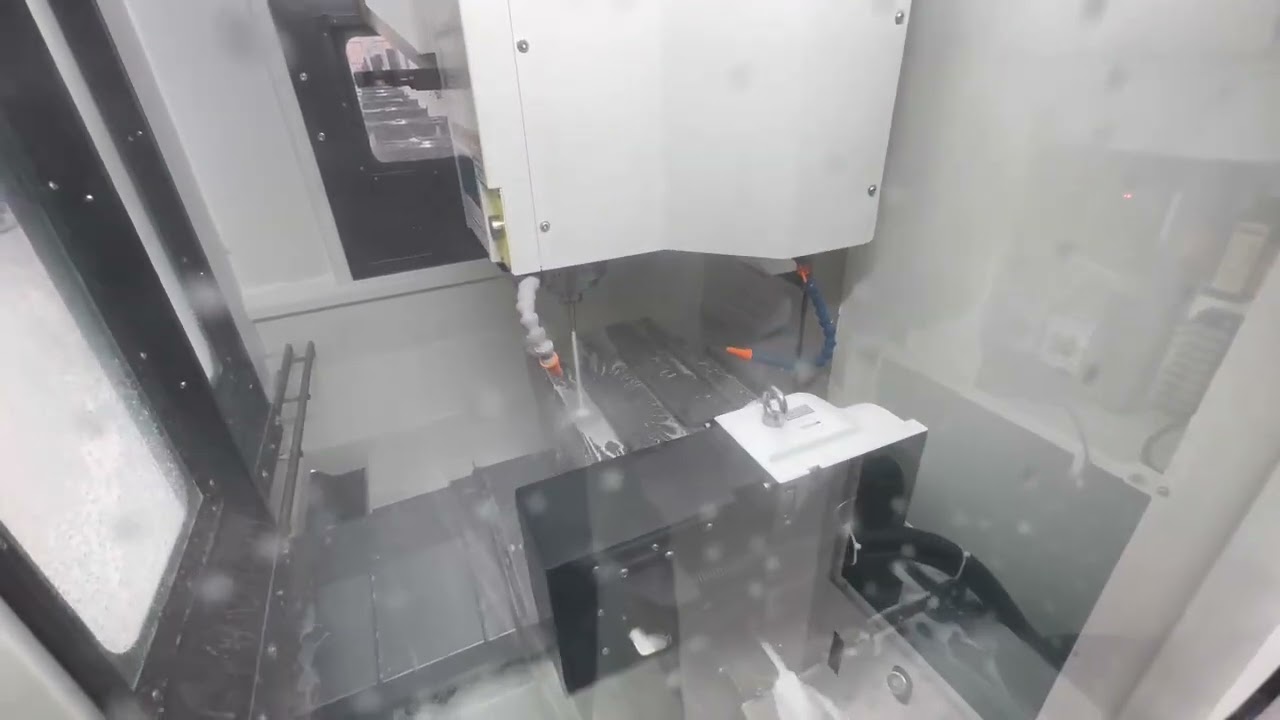

CTS 20 bar.
Technical Specifications
X5
X7
X9
Table
Table size (mm)
Table size (in)
560×260
22.05×10.24
700×300
27.56×11.81
860×500
33.86×19.69
Table load (kg)
Table load (lb)
150
331
150
331
500
1102
Table surface: number×size×distance (mm)
Table surface: number×size×distance (in)
T-slots 3×14×80
T-slots 3×0.55×3.15
T-slots 3×14×100
T-slots 3×0.55×3.94
T-slots 5×18×100
T-slots 5×0.71×3.94
Travel distances
X-axis (mm)
X-axis (in)
300
11.81
400
15.75
760
29.92
Y-axis (mm)
Y-axis (in)
260
10.24
300
11.81
500
19.68
Z-axis (mm)
Z-axis (in)
300
11.81
380
14.96
500
19.68
Distance from spindle nose to table top (mm)
Distance from spindle nose to table top (in)
150-450
5.91-17.72
150-530
5.91-20.87
100-600
3.94-23.62
Distance between spindle and column surface (mm)
Distance between spindle and column surface (in)
330
12.99
358
14.09
530
20.87
Spindle
Spindle taper
Spindle taper
BT30
BT30
BT30
BT30
BT40
BT40
Power-drive
Power-drive
Direct
Direct
Belt
Belt
Belt
Belt
Max. spindle speed (rpm)
20000
20000
12000
12000
10,000 (12,000 optional)
10,000 (12,000 optional)
Feed
Rapid traverse (m/min)
Rapid traverse (in/min)
30
1181.1
30
1181.1
30
1181.1
Cutting feed (m/min)
Cutting feed (in/min)
10
393.7
10
393.7
10
393.7
Automatic tool changer
Type
Type
Wheel
Wheel
Arm
Arm
Arm
Arm
Tool holder
Tool holder
BT30
BT30
BT30
BT30
BT40
BT40
Tool storage capacity
Tool storage capacity
16
16
16
16
24
24
Max. tool diameter (mm)
Max. tool diameter (in)
63
2.48
63
2.48
125
4.92
Max. tool length (mm)
Max. tool length (in)
200
7.87
200
7.87
240
9.45
Max. tool weight (kg)
Max. tool weight (lb)
3
6.61
3
6.61
7
15.43
Tool to tool (s)
Tool to tool (s)
1
1
1.5
1.5
2
2
Other data
Machine weight (kg)
Machine weight (lb)
2180
4806
2200
4850
6000
13228
Machine dimensions L x W x H (mm)
Machine dimensions L x W x H (in)
2020×1000×2360
79.53×39.37×92.91
1800×1600×2250
70.87×62.99×88.58
1850×2245×2800
72.83×88.39×110.24
Min/max air pressure (MPa)
Min/max air pressure (PSI)
0.4/0.8
60/120
0.4/0.8
60/120
0.4/0.8
60/120
Coolant tank capacity (L)
Coolant tank capacity (gal)
80
21.1
80
21.1
130
34.3
Technical Specifications
X5
X7
X9
Table
Table size (mm)
560×260
700×300
860×500
Table load (kg)
150
150
500
Table surface (number×size×distance in mm)
T-slots 3×14×80
T-slots 3×14×100
T-slots 5×18×100
Travel distances
X-axis (mm)
300
400
760
Y-axis (mm)
260
300
500
Z-axis (mm)
300
380
500
Distance from spindle nose to table top
150-450
150-530
100-600
Distance between spindle and column surface
330
358
530
Spindle
Spindle taper
BT30
BT30
BT40
Power-drive
Direct
Belt
Belt
Max. spindle speed (rpm)
20,000
12,000
10,000 (12,000 optional)
Feed
Rapid traverse (mm / min)
30,000
30,000
30,000
Cutting feed (mm / min)
10,000
10,000
10,000
Automatic tool changer
Type
Wheel
Arm
Arm
Tool holder
BT30
BT30
BT40
Tool storage capacity
16
16
24
Max. tool diameter (mm)
63
63
125
Max. tool length (mm)
200
200
240
Max. tool weight (kg)
3
3
7
Tool to tool (s)
1
1.5
2
Other data
Machine weight (kg)
2180
2200
5000
Machine dimensions L x W x H (mm)
Footprint including coolant tank and controller
Footprint including coolant tank and controller
2020×1000×2360
1800×1600×2250
1850×2245×2800
Min/max air pressure (MPa (psi))
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
Coolant tank capacity (Liters)
80
80
130
