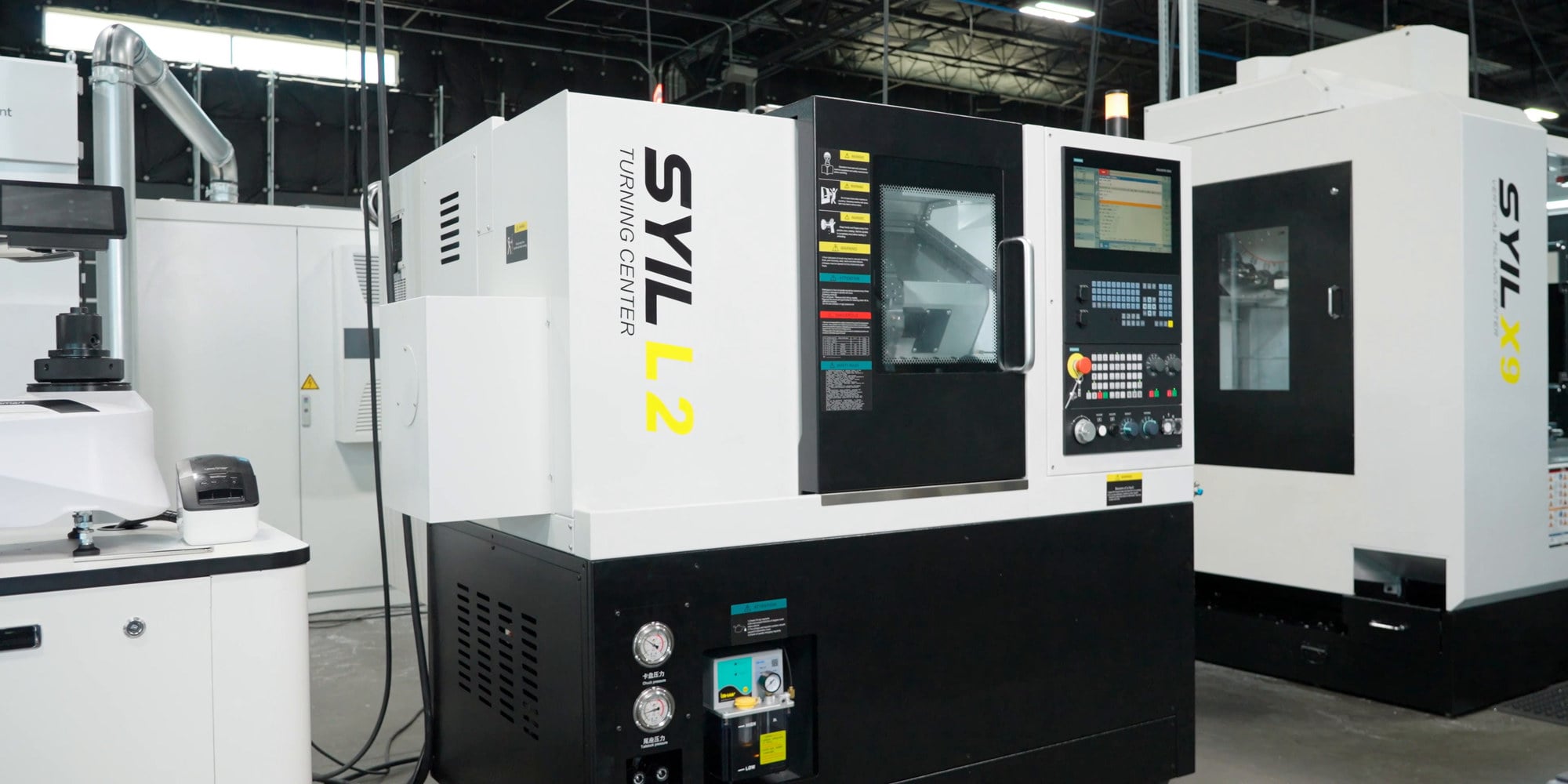

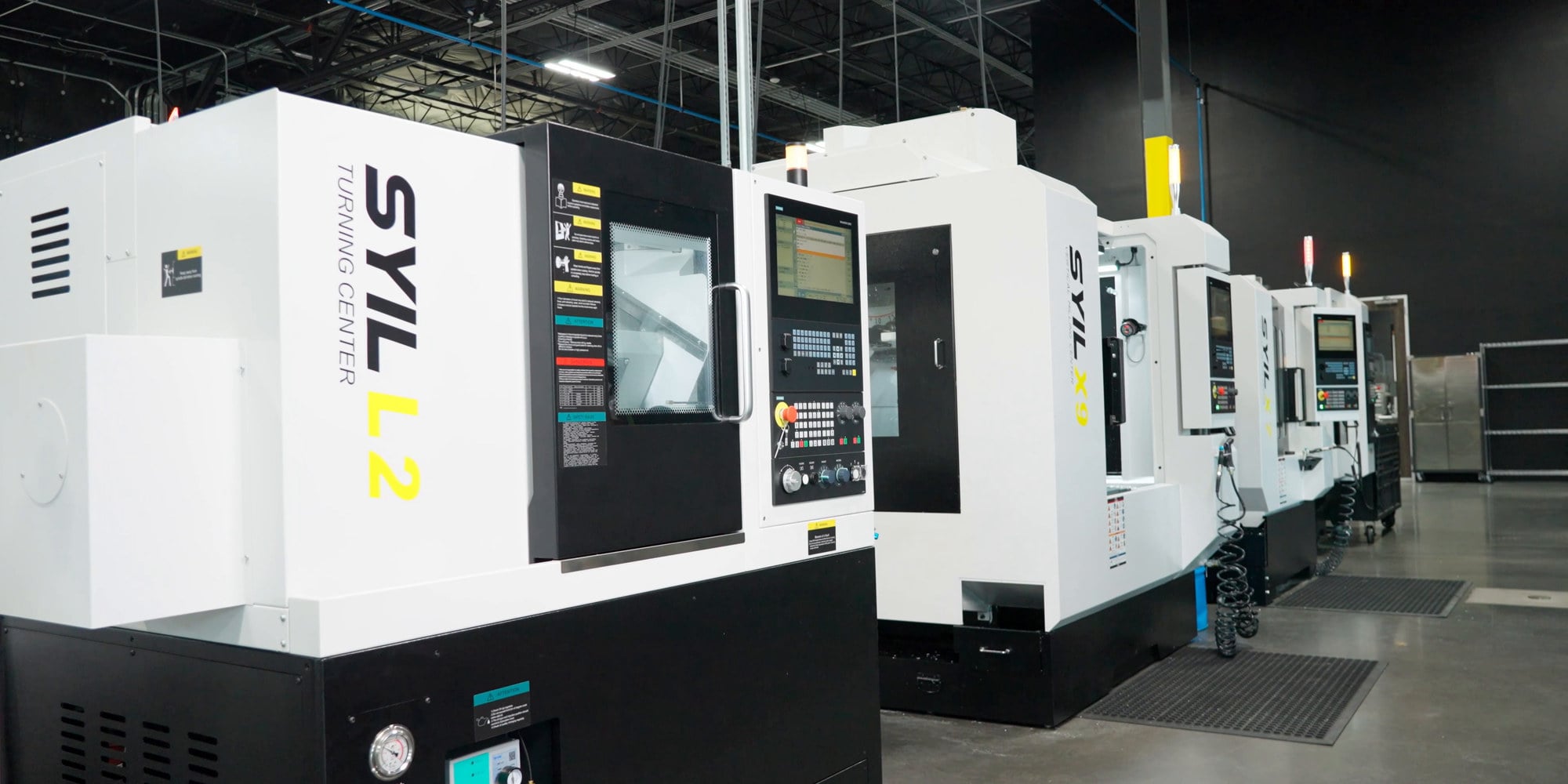

SYIL L Siemens SINUMERIK
The SYIL L2 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.
.png?width=5760&name=Mask%20group%20(22).png)
Discover the Advantages of SYIL Lathes for Small Parts Manufacturing

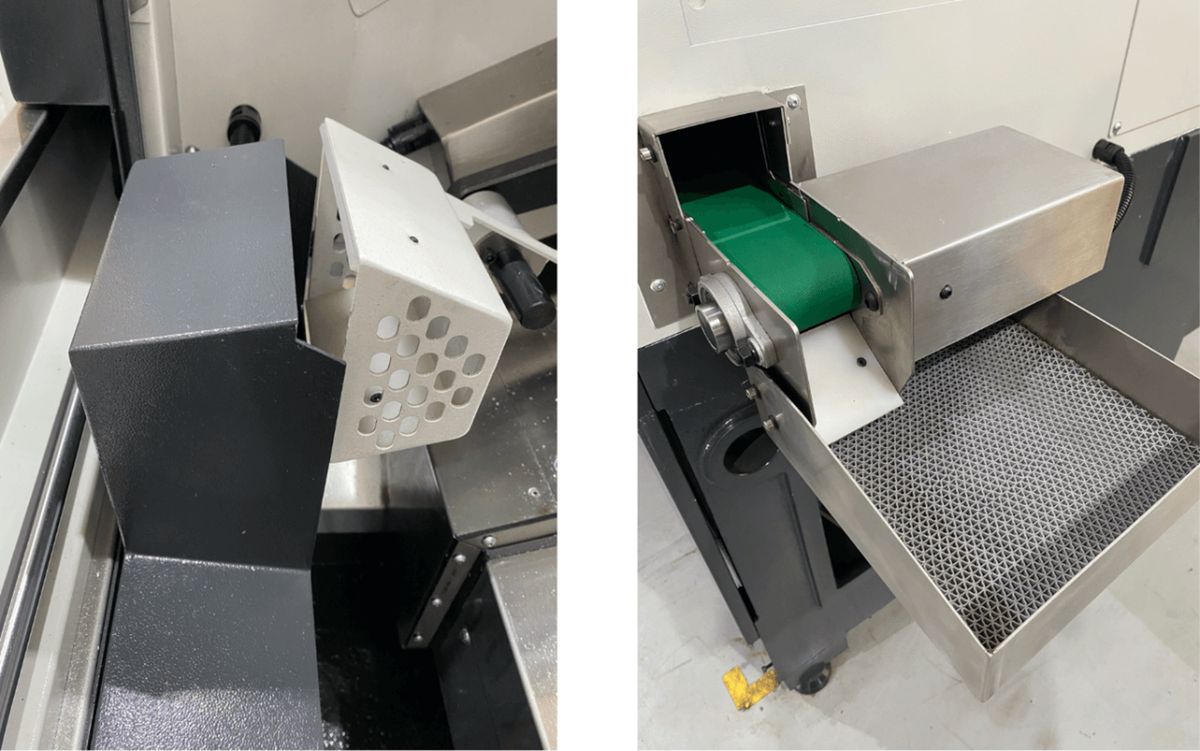

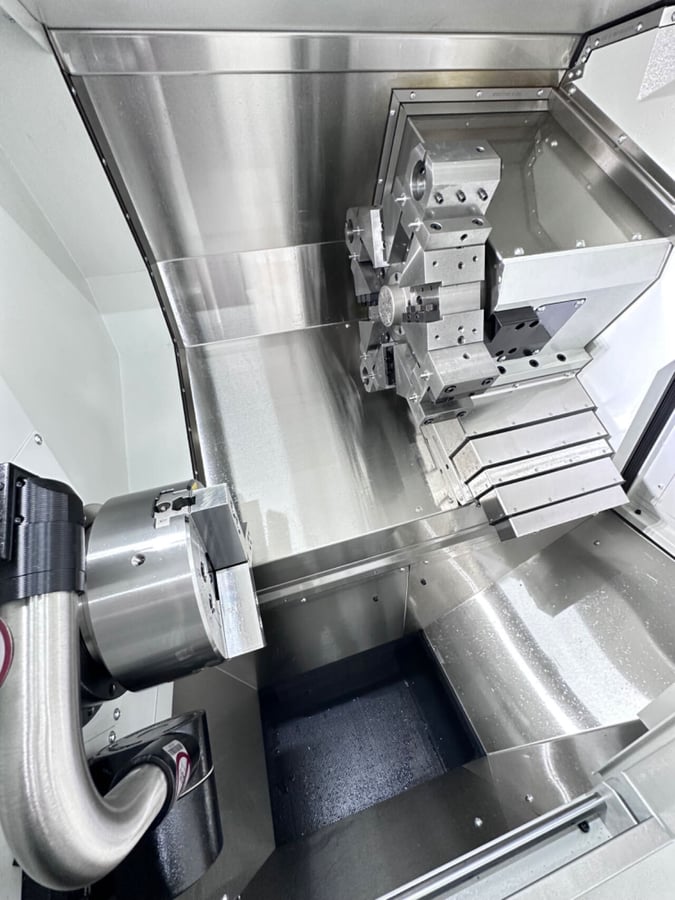

SYIL L2 adopts a platform-based and modular design, featuring a compact footprint and a comfortable operating space with expandability. It reserves interfaces for various expansion functions to realize automated processing, such as loading and unloading robots, automatic doors, automatic feeders, tool setters, online workpiece inspection, etc.
.png?width=5760&name=Mask%20group%20(32).png)
.png?width=5760&name=Mask%20group%20(33).png)

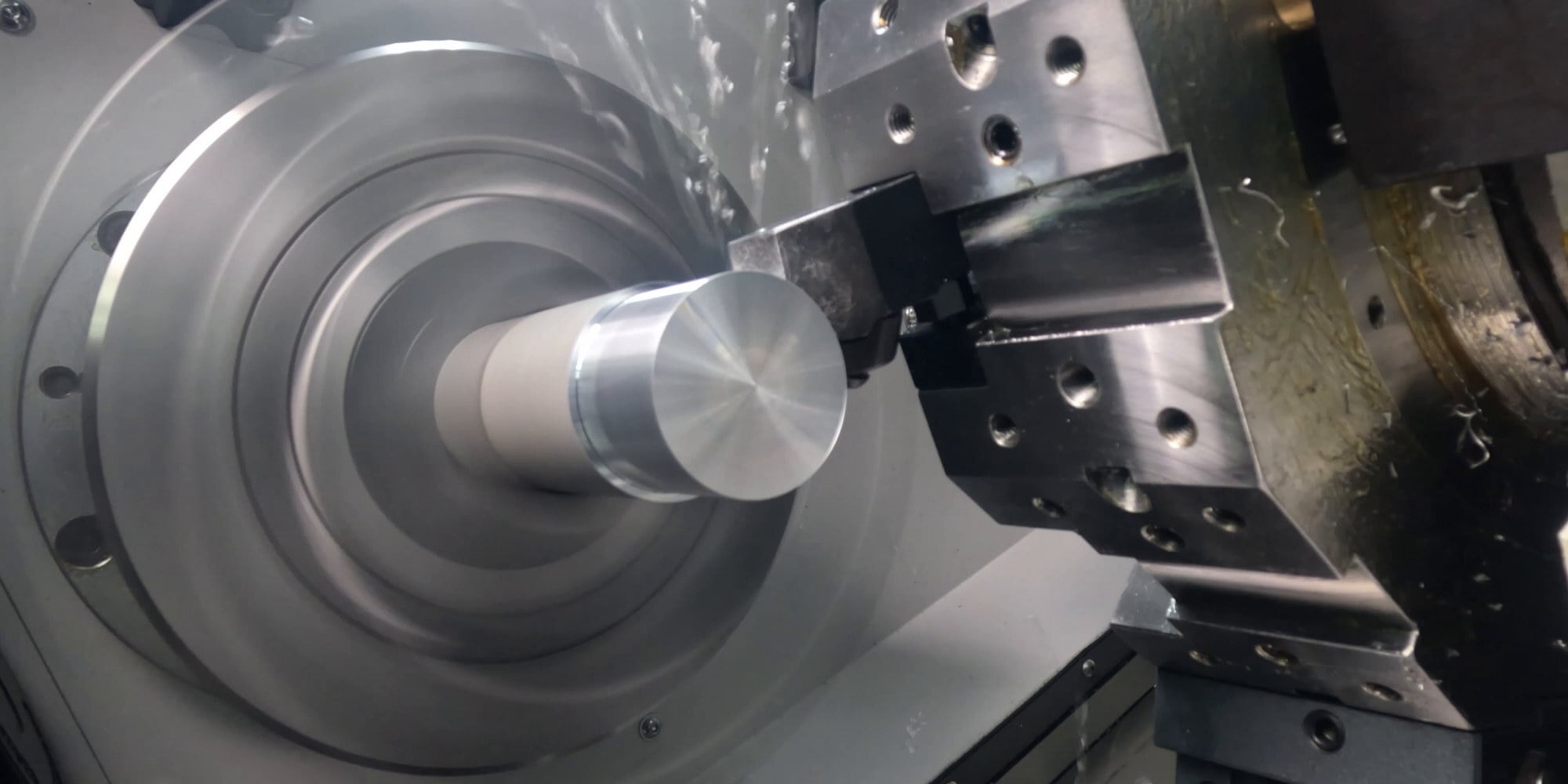

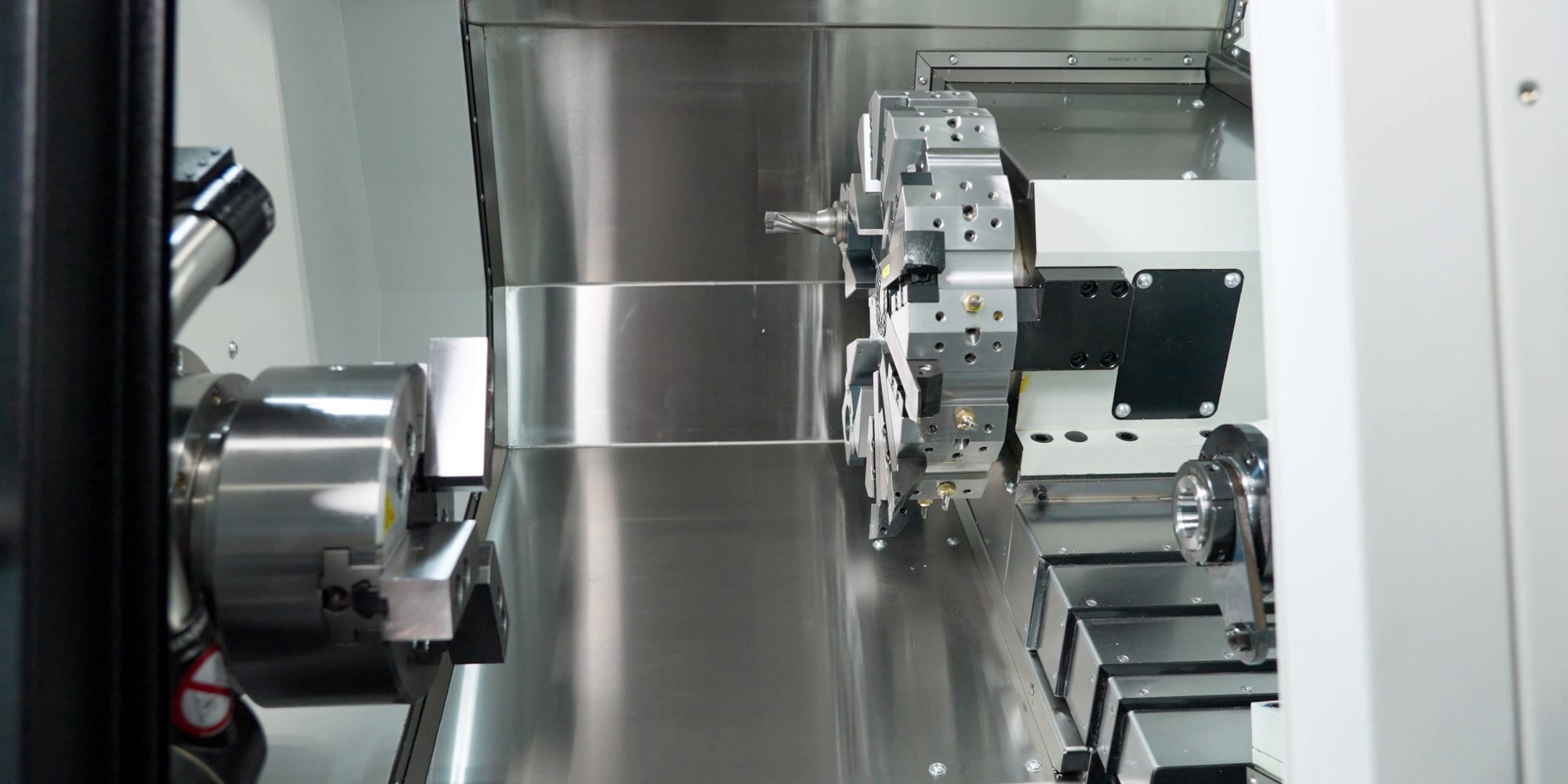

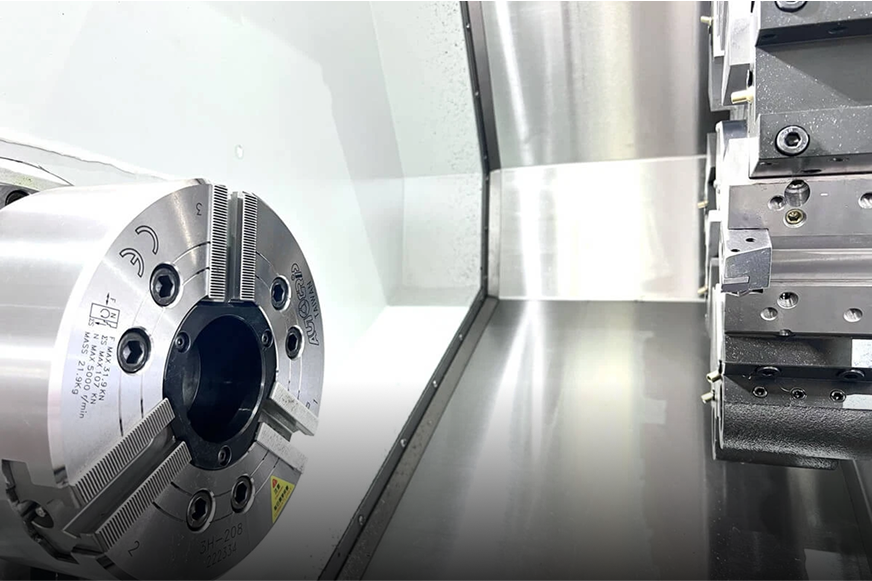

High-Performance Turning
With SYIL turning centers, you can expect superior accuracy and repeatability. The advanced CNC technology ensures that every cut is precise, resulting in consistent and high-quality parts. Whether you are prototyping or producing small metal parts in large quantities, SYIL lathes deliver exceptional results every time.
.png?width=5760&name=Mask%20group%20(36).png)
Technical Specifications
L2
L3
L4

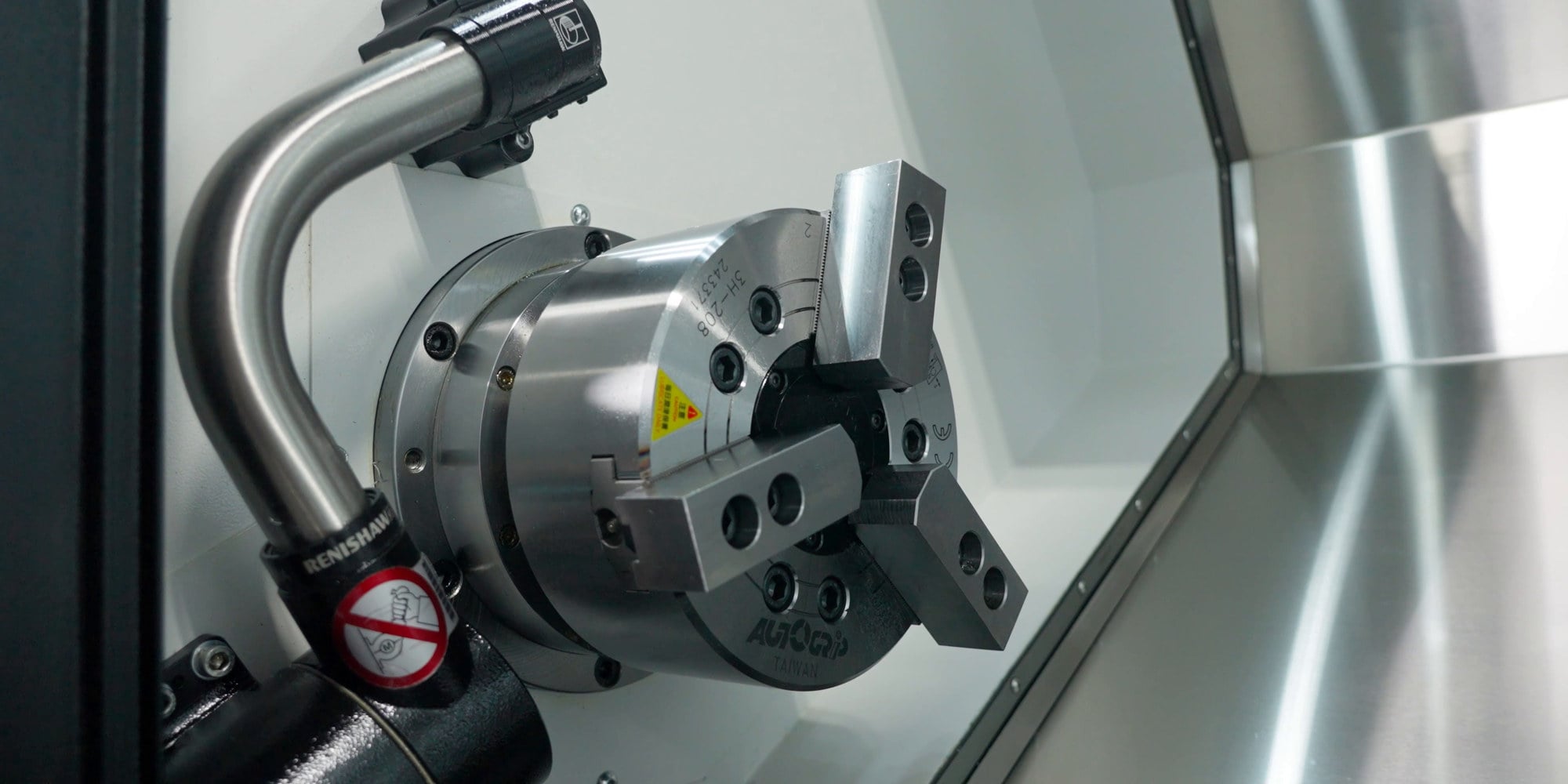

Processing capacity
Chuck size (")
Chuck size (")
8
8
8
8
10
10
Max. swing diameter over bed (mm)
Max. swing diameter over bed (in)
ø510
ø20.08
ø550
ø21.65
ø630
ø24.80
Max. swing diameter over carriage (mm)
Max. swing diameter over carriage (in)
ø260
ø10.24
ø290 (with Y axis: 200)
ø11.42 (with Y axis: 7.87)
ø330
ø12.99
Max. workpiece length (mm)
Max. workpiece length (in)
300
11.81
500 (with Y axis: 530, with Counter Spindle: 450)
19.69 (with Y axis: 20.87, with Counter Spindle: 17.72)
800/1100/1500
31.50/43.31/59.06
Max. work piece diameter (mm)
Max. work piece diameter (in)
ø380
ø14.96
ø380
ø14.96
ø520
ø20.47
Spindle
Max. speed (rpm)
Max. speed (rpm)
4000
4000
4000
4000
3500
3500
Spindle nose
Spindle nose
A2-6
A2-6
A2-6
A2-6
A2-8
A2-8
Spindle bore diameter (mm)
Spindle bore diameter (in)
ø66
ø2.60
ø63
ø2.48
ø91
ø3.58
Through spindle bore diameter (mm)
Through spindle bore diameter (in)
ø52
ø2.05
ø52
ø2.05
ø75
ø2.95
Spindle power (kW)
Spindle power (hp)
11/15
14.75/20.11
11/15
14.75/20.11
Minimum C-axis indexing (°)
Minimum C-axis indexing (°)
0
Counter spindle
Chuck size (")
Chuck size (")
6
6
Rate speed / Max. speed (rpm)
Rate speed / Max. speed (rpm)
1750/6000
1750/6000
Spindle nose
Spindle nose
A2-5
A2-5
Spindle bore diameter (mm)
Spindle bore diameter (in)
ø56
ø2.21
Through spindle bore diameter (mm)
Through spindle bore diameter (in)
ø45
ø1.77
Spindle power (kW)
Spindle power (hp)
11
14.75
Travels (m)
Travels (in)
530
20.87
Rapid traverse (m/min)
Rapid traverse (in/min)
30
30
Travels
X Rapid traverse (m/min)
X Rapid traverse (in/min)
30
1181.1
30
1181.1
30
1181.1
Z Rapid traverse (m/min)
Z Rapid traverse (in/min)
30
1181.1
30
1181.1
30
1181.1
Y Rapid traverse (m/min)
Y Rapid traverse (in/min)
15
590.6
X Travels (mm)
X Travels (in)
200
7.87
190+10
7.48+0.39
260+10
10.24+0.39
Z Travels (mm)
Z Travels (in)
360
14.17
550 (with Y axis: 490+-50)
21.65 (with Y axis: 19.29+-1.97)
850/1150/1550
33.46/45.28/61.02

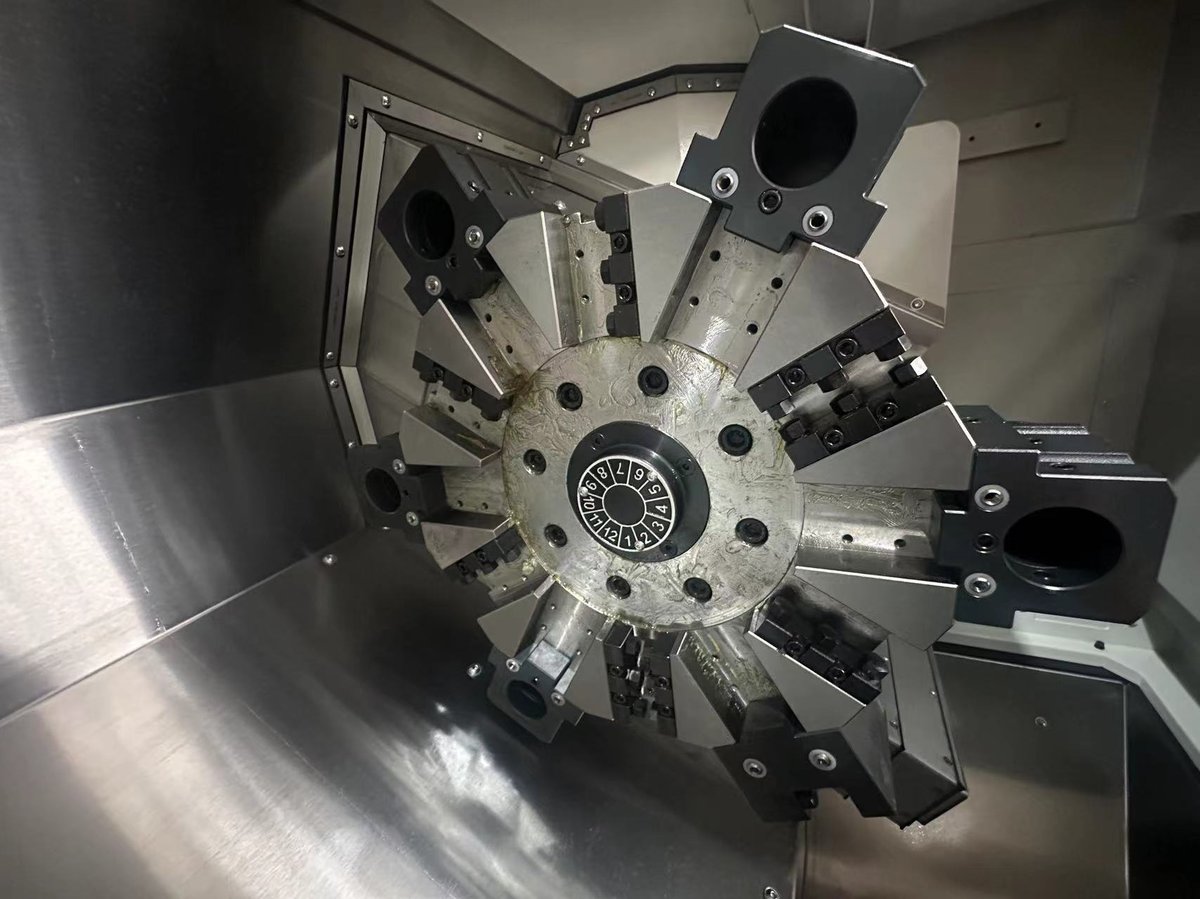

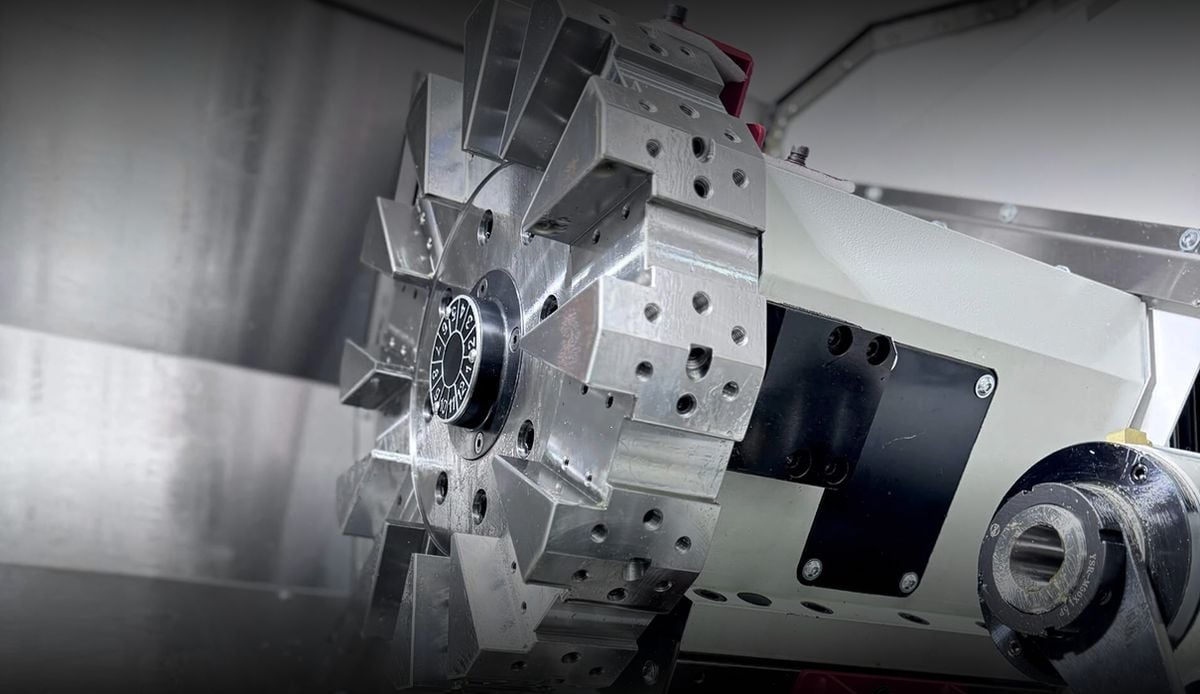

Tool holder
Type
Type
Servo turret
Servo turret
Power Turret
Power Turret
Servo Turret
Servo Turret
Tools
Tools
8/12
8/12
12
12
12
12
Tool shank size (mm)
Tool shank size (in)
25×25
0.98×0.98
25×25
0.98×0.98
25×25
0.98×0.98
Tool shank diameter (mm)
Tool shank diameter (in)
ø40
ø1.57
ø40
ø1.57
ø40
ø1.57
Min. Tool to Tool (s)
Min. Tool to Tool (s)
0.28
0.28
0.2
0.2
0.2
0.2
Max. Tool to Tool (s)
Max. Tool to Tool (s)
0.4
0.4
0.5
0.5
0.5
0.5
Max. Live Tooling Speed (rpm)
Max. Live Tooling Speed (rpm)
5000
5000
5000
5000
Live Tooling Model
Live Tooling Model
BMT55
BMT55
BMT55
BMT55

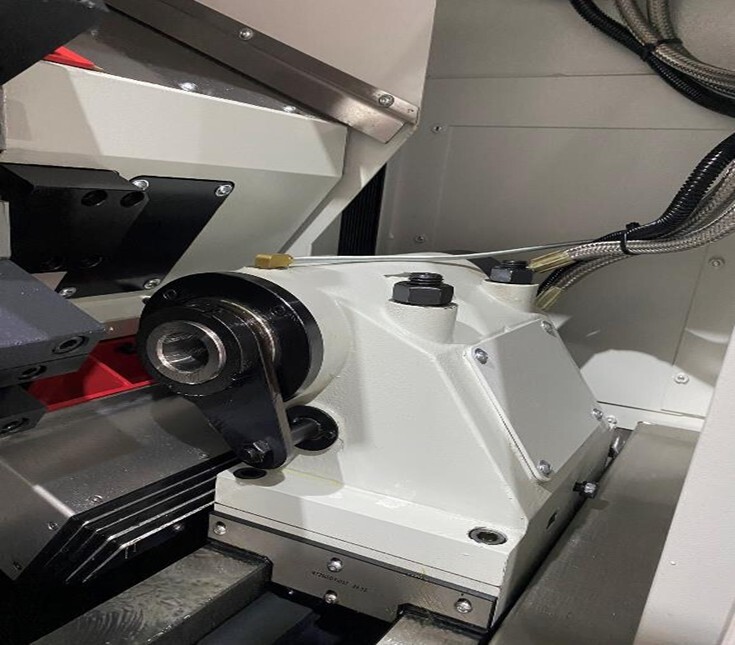

Tail stock
Travels from Tail Stock to Chunk (mm)
Travels from Tail Stock to Chunk (in)
465 (with Y axis: 500)
18.31 (with Y axis: 19.69)
Tail Stock Rapid Traverse (m/min)
Tail Stock Rapid Traverse (in/min)
30
1181.1
10
393.7
Sleeve taper
Sleeve taper
MT4
MT4
MT5
MT5
Accuracy
Finish turning cylindrical accuracy
Finish turning cylindrical accuracy
IT6
IT6
IT6
IT6
IT6
IT6
Finish turning parts surface
Finish turning parts surface
Ra 0.4-1.6
Ra 0.40-1.60
Ra 0.4-1.6
Ra 0.40-1.60
Ra 0.4-1.6
Ra 0.40-1.60
Finished turning parts roundness (mm)
Finished turning parts roundness (in)
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
Position accuracy Ｘ (mm)
Position accuracy Ｘ (in)
0.005
0.000197
0.005
0.000197
0.005
0.000197
Position accuracy Ｚ (mm)
Position accuracy Ｚ (in)
0.008
0.000315
0.008
0.000315
0.008
0.000315
Repeat accuracy Ｘ (mm)
Repeat accuracy Ｘ (in)
0.002
0.000079
0.002
0.000079
0.002
0.000079
Repeat accuracy Ｚ (mm)
Repeat accuracy Ｚ (in)
0.004
0.000157
0.004
0.000157
0.004
0.000157
Other data
Machine weight (kg)
Machine weight (lb)
3050
6724
4000
8818
6200/6800/7220
13669/14991/15917
Machine dimensions
Machine dimensions
L × W × H (mm)
L × W × H (in)
1775×1600×1690
69.88×62.99×66.54
2500×1720×1740
98.43×67.72×68.50
(3522/3872/3992)×1982×1772
(138.66/152.44/157.17)×78.03×69.76
with Y axis (mm)
with Y axis (in)
2680×1750×1850
105.51×68.90×72.83
with Counter Spindle (mm)
with Counter Spindle (in)
2680×1750×1850
105.51×68.90×72.83
Technical Specifications
L2
L3
L4
Processing Capacity
Chuck size
8 inch
8 inches
10 inches
Max. swing diameter over bed
ø510 mm
ø550 mm
ø630 mm
Max. swing diameter over carriage
ø260mm
ø290mm (with Y axis: 200mm)
ø330 mm
Max. workpiece Length
300mm
500mm (with Y axis: 530mm, with Counter Spindle: 450mm)
800 mm (1100 mm/ 1500mm)
Max. work piece diameter
ø380mm
ø380mm
ø520mm
Spindle
Max speed
4000rpm
4000rpm
3500 rpm
Spindle nose
A2-6
A2-6
A2-8
Spindle bore diameter
ø66mm
ø63mm
ø91mm
Through spindle bore diameter
ø52mm
ø52mm
ø75mm
Spindle power
11/15kW
11/15kW
15 KW
Min. C-axis indexing
--
0.001°
--
Counter Spindle
Chuck size
--
6 inches
--
Rate speed / Max speed
--
1750/6000rpm
--
Spindle nose
--
A2-5
--
Spindle bore diameter
--
ø56mm
--
Through spindle bore diameter
--
ø45mm
--
Spindle power
--
11kW
--
Travels
--
530m
--
Rapid traverse
--
30m/min
--
Tool Holder
Type
Servo turret
Power Turret
Servo Turret
Tools
8/12
12
12
Tool shank size
25x25/20x20mm
25x25mm
25x25mm
Tool shank diameter
ø40/ø32mm
ø40mm
ø40mm
Min. Tool to Tool
--
0.2 seconds
0.2s
Max. Tool to Tool
--
0.5s
0.5s
Max. Live Tooling Speed
--
5000rpm
5000rpm
Live Tooling Model
--
BMT55
BMT55
Travels
X Rapid traverse
30m/min
30m/min
30m/min
Z Rapid traverse
30m/min
30m/min
30m/min
Y Rapid traverse
--
15m/min
--
X Travels
200mm
190+10mm
260+10 mm
Z Travels
360mm
550mm (with Y axis: 490+-50mm)
850mm (1150 mm/ 1550 mm)
Tail Stock
Travels from Tail Stock to Chunk
--
465mm (with Y axis: 500mm)
--
Tail Stock Rapid Traverse
--
30m/min
10m/min
Sleeve taper
--
MT4
MT5
Accuracy
Finish turning cylindrical accuracy
IT6
IT6
IT6
Finish turning parts surface
Ra0.4-1.6
Ra0.4-1.6
Ra0.4-1.6
Finished turning parts roundness
≤0.003mm
≤0.003mm
≤0.003mm
Position accuracy(Ｘ)
0.005mm
0.005mm
0.005mm
Position accuracy(Ｚ)
0.008mm
0.008mm
0.008mm
Repeat accuracy (Ｘ)
0.002mm
0.002mm
0.002mm
Repeat accuracy(Ｚ)
0.004mm
0.004mm
0.004mm
Dimensions and Weight
Dimensions(LxWxH)
1775x1600x1690mm
2500x1720x1740mm (with Y axis: 2680x1750x1850mm, with Counter Spindle: 2680x1750x1850mm)
2500x1720x1740 mm
N.W.
3050kg
4000kg
6200 kg/ 6800 kg/ 7220 kg
