SYIL x Siemens SINUMERIK
The SYIL G3 comes standard with the Siemens SINUMERIK 828D control system. With its advanced CNC performance, the SINUMERIK 828D sets productivity standards for turning on SYIL machines. The addition of new SINAMICS drives and SIMOTICS motion control motors makes the SINUMERIK 828D even more productive. Its robust hardware architecture and intelligent control algorithms, combined with high-quality drive and motor technology, ensure maximum dynamics and precision during machining.

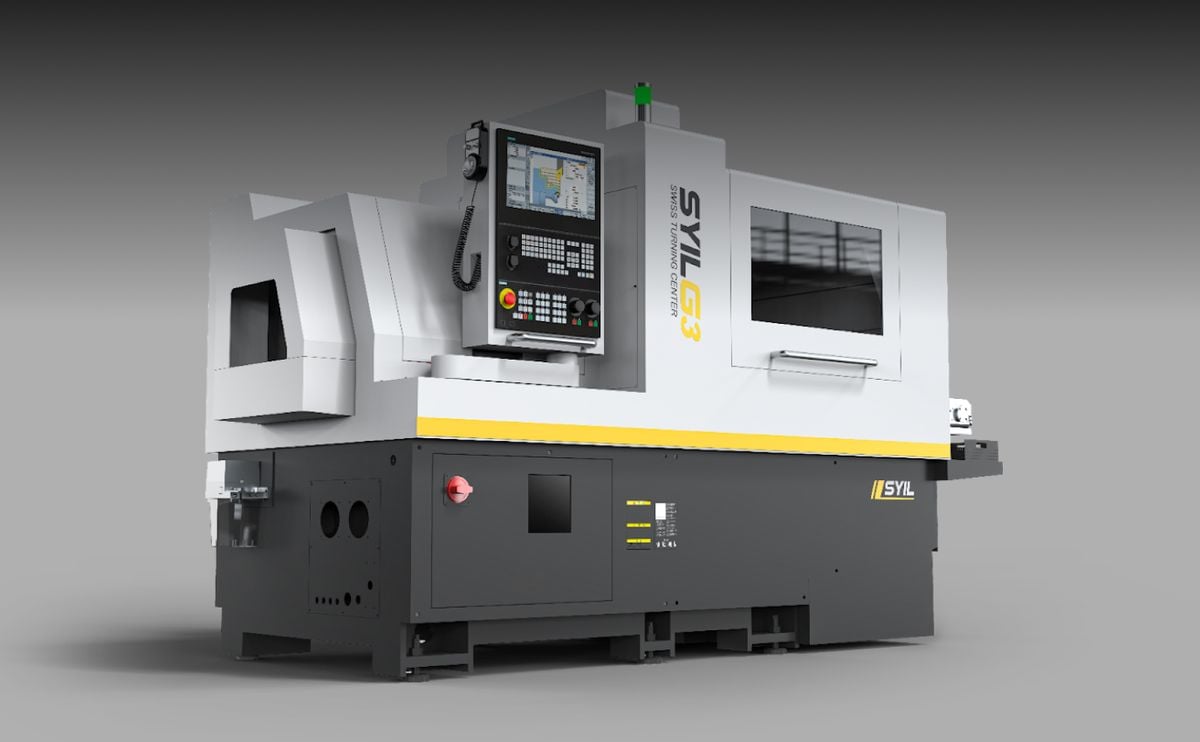

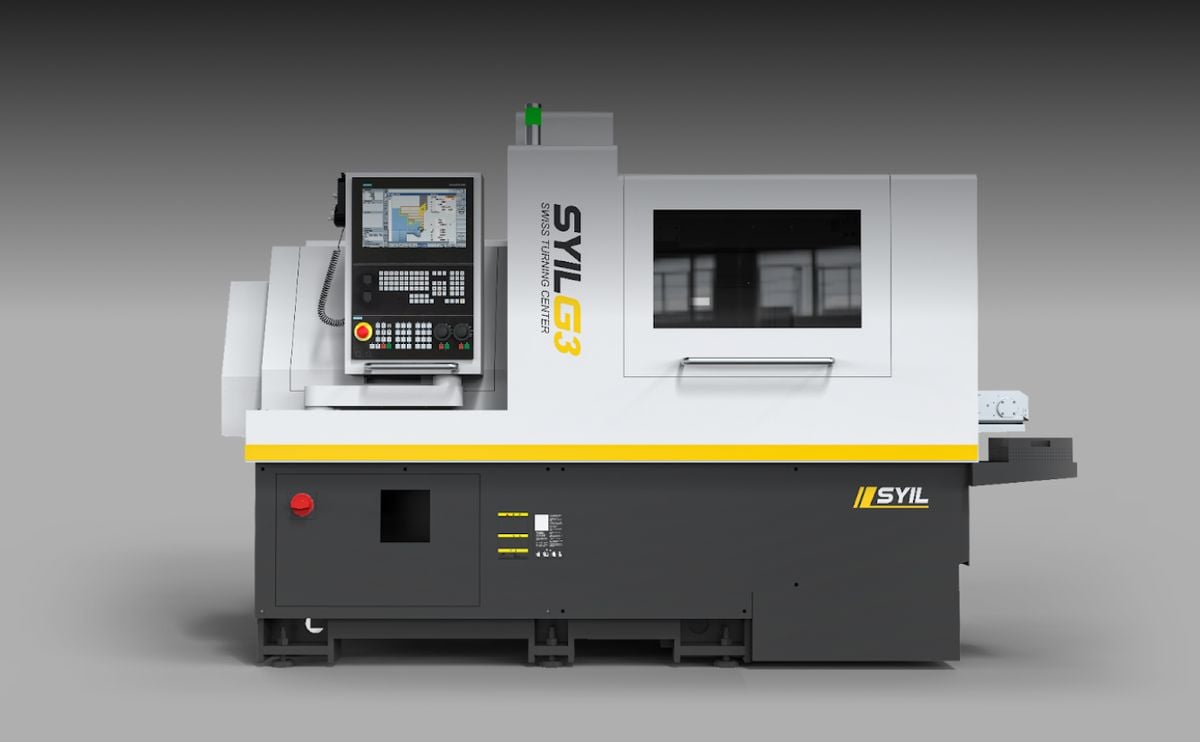

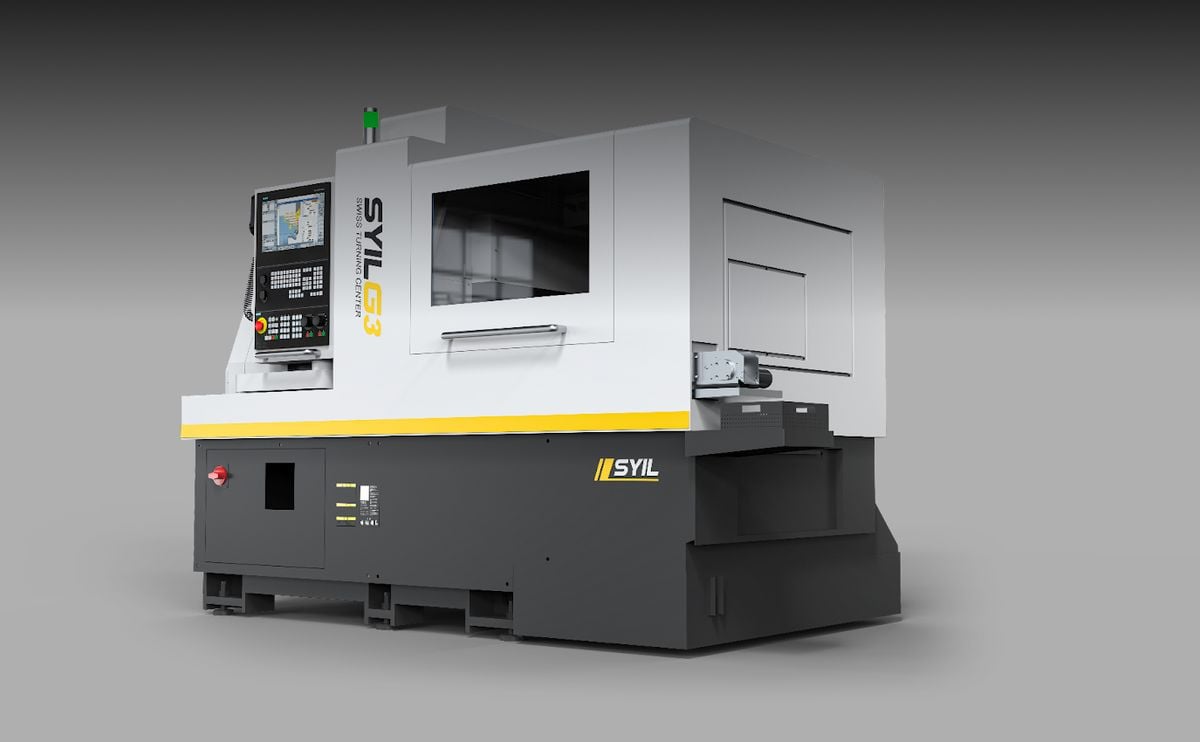

SYIL G3
The G3 is a high-performance Swiss-type CNC lathe, ideal for machining small and long parts with exceptional precision and stability.
SYIL G3 Features
Ideal for machining small and long parts with exceptional precision and stability.
Technical Specifications
G1 L125
G2 L205
G2 L265
G2 205
G2 206
G2 265
G2 266
G3 L325
G3 L326
G3 L385
G3 L386
Processing capabilities
Processing capabilities
Max. processing bar diameter (mm)
Max. processing bar diameter (in)
Φ12
Φ0.47
Φ20
Φ0.79
Φ26
Φ1.02
Φ20
Φ0.79
Φ20
Φ0.79
Φ26
Φ1.02
Φ26
Φ1.02
Φ32
Φ1.26
Φ32
Φ1.26
Φ38
Φ1.50
Φ38
Φ1.50
Spindle through hole diameter (mm)
Spindle through hole diameter (in)
Φ16
Φ0.63
Φ25
Φ0.98
Φ30
Φ1.18
Φ25
0.98
Φ25
Φ0.98
Φ30
Φ1.18
Φ30
Φ1.18
Φ37
Φ1.46
Φ37
Φ1.46
Φ39
Φ1.53
Φ39
Φ1.53
Max. processing length(mm) (No guide bushing)
Max. processing length(in) (No guide bushing)
2.5D(Max. 30)
2.5D(Max. 1.18)
2.5D(Max. 50)
2.5D(Max. 1.97)
2.5D(Max. 50)
2.5D(Max. 1.97)
2.5D(Max. 50)
2.50D(Max. 1.97)
2.5D(Max. 50)
2.50D(Max. 1.97)
2.5D(Max. 50)
2.50D(Max. 1.97)
2.50D(Max. 50)
2.50D(Max. 1.97)
2.5D(Max. 80)
2.50D(Max. 3.15)
2.5D(Max. 80)
2.50D(Max. 3.15)
2.5D(Max.90)
2.50D(Max. 3.54)
2.5D(Max.90)
2.50D(Max. 3.54)
Max. processing length(mm) (Fixed guide sleeve)
Max. processing length(in) (Fixed guide sleeve)
180
7.09
220(optional)
8.66(optional)
220(optional)
8.66(optional)
220(optional)
8.66(optional)
220(optional)
8.66(optional)
220(optional)
8.66(optional)
220(optional)
8.66(optional)
--
--
--
--
--
--
--
--
Max. processing length(mm) (Rotary guide sleeve)
Max. processing length(in) (Rotary guide sleeve)
60
2.36
180
7.09
180
7.09
180
7.09
180
7.09
180
7.09
180
7.09
310
12.21
310
12.21
310
12.21
310
12.21
Max. clamping diameter of back spindle (mm)
Max. clamping diameter of back spindle (in)
Φ12
Φ0.47
Φ20
Φ0.79
Φ20
Φ0.79
Φ20
Φ0.79
Φ20
Φ0.79
Φ20
Φ0.79
Φ20
Φ0.79
Φ32
Φ1.26
Φ32
Φ1.26
Φ38
Φ1.50
Φ38
Φ1.50
Max. drilling diameter of spindle (mm)
Max. drilling diameter of spindle (in)
Φ7
Φ0.28
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ13
Φ0.51
Φ13
Φ0.51
Φ13
Φ0.51
Φ13
Φ0.51
Max. tapping diameter of spindle
Max. tapping diameter of spindle
M6
M6
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
M12
M12
M12
M12
M12
M12
M12
M12
Max. drilling diameter of back spindle (mm)
Max. drilling diameter of back spindle (in)
Φ7
Φ0.28
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Max. tapping diameter of back spindle
Max. tapping diameter of back spindle
M6
M6
M8
M8
M8
M8
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
M10
Max. drilling diameter of radial live tool (mm)
Max. drilling diameter of radial live tool (in)
Φ6
Φ0.24
Φ8
Φ0.32
Φ8
Φ0.32
Φ8
Φ0.32
Φ8
Φ0.32
Φ8
Φ0.32
Φ8
Φ0.32
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Φ10
Φ0.39
Max. tapping diameter of radial live tool
Max. tapping diameter of radial live tool
M5
M5
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M6
M8
M8
M8
M8
M8
M8
M8
M8
Max. drilling diameter of back powered tool (mm)
Max. drilling diameter of back powered tool (in)
--
--
Φ8(optional)
Φ0.32(optional)
Φ8(optional)
Φ0.32(optional)
Φ8(optional)
Φ0.32(optional)
Φ8
Φ0.32
Φ8(optional)
Φ0.32(optional)
Φ8
Φ0.32
Φ8(optional)
Φ0.32(optional)
Φ8
Φ0.32
Φ8(optional)
Φ0.32(optional)
Φ8
Φ0.32
Max. tapping diameter of back powered tool
Max. tapping diameter of back powered tool
--
--
M6(optional)
M6(optional)
M6(optional)
M6(optional)
M6(optional)
M6(optional)
M6
M6
M6(optional)
M6(optional)
M6
M6
M6(optional)
M6(optional)
M6
M6
M6(optional)
M6(optional)
M6
M6
Mechanical capabilities
Mechanical capabilities
Spindle speed (r/min)
Spindle speed (r/min)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
8000(rotary guide sleeve 6000)
8000(rotary guide sleeve 6000)
8000(rotary guide sleeve 6000)
8000(rotary guide sleeve 6000)
6000(rotary cylinder)
6000(rotary cylinder)
6000(rotary cylinder)
6000(rotary cylinder)
Back spindle speed (r/min)
Back spindle speed (r/min)
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
10000
8000
8000
8000
8000
8000
8000
8000
8000
Radial live tool speed (r/min)
Radial live tool speed (r/min)
6000
6000
5000
5000
5000
5000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
6000
Back live tool speed (r/min)
Back live tool speed (r/min)
--
--
6000(optional)
6000(optional)
6000(optional)
6000(optional)
6000(optional)
6000(optional)
6000
6000
6000(optional)
6000(optional)
6000
6000
6000(optional)
6000(optional)
6000
6000
6000(optional)
6000(optional)
6000
6000
Rapid moving speed (m/min)
Rapid moving speed (in/min)
30(X2, Y1, Z1)
1181.10(X78.70, Y39.40, Z39.40)
24(X2, Y1, Z1, Z2)
944.90(X78.70, Y39.40, Z39.40, Z78.70)
24(X2, Y1, Z1, Z2)
944.90(X78.70, Y39.40, Z39.40, Z78.70)
24(X2, Y1, Z1, Z2)
944.90(X78.70, Y39.40, Z39.40, Z78.70)
24(X2, Y1, Z1, Z2)
944.90(X78.70, Y39.40, Z39.40, Z78.70)
24(X2, Y1, Z1, Z2)
944.90(X78.70, Y39.40, Z39.40, Z78.70)
24(X2, Y1, Z1, Z2)
944.90(X78.70, Y39.40, Z39.40, Z78.70)
30(X2, Y1, Z1, Z2)
1181.10(X78.70, Y39.40, Z39.40, Z78.70)
30(X2, Y1, Z1, Z2)
1181.10(X78.70, Y39.40, Z39.40, Z78.70)
30(X2, Y1, Z1, Z2)
1181.10(X78.70, Y39.40, Z39.40, Z78.70)
30(X2, Y1, Z1, Z2)
1181.10(X78.70, Y39.40, Z39.40, Z78.70)
Rapid moving speed (m/min)
Rapid moving speed (in/min)
24(X1, Z2)
944.9(X39.4, Z78.7)
20(X1)
787.4(X39.4)
20(X1)
787.4(X39.4)
20(X1)
787.4(X39.4)
20(X1, Y2)
787.4(X39.4, Y78.7)
20(X1)
787.4(X39.4)
20(X1, Y2)
787.4(X39.4, Y78.7)
24(X1)
944.9(X39.4)
24(X1, Y2)
944.9(X39.4, Y78.7)
24(X1, Z1)
944.9(X39.4, Z39.4)
24(X1, Y2, Z1)
944.9(X39.4, Y78.7, Z39.4)
Spindle runout (mm)
Spindle runout (in)
≤0.002
≤0.000079
≤0.002
≤0.000079
≤0.002
≤0.000079
≤0.002
≤0.000079
≤0.002
≤0.000079
≤0.002
≤0.000079
≤0.002
≤0.000079
≤0.002
≤0.000079
≤0.002
≤0.000079
≤0.002
≤0.000079
≤0.002
≤0.000079
Repeat positioning accuracy (mm)
Repeat positioning accuracy (in)
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
≤0.003
≤0.000118
Tool system
Tool system
External cylindrical tools
External cylindrical tools
5(□10)
5(□10)
1(□16)+5(□12)
1(□16)+5(□12)
1(□16)+5(□12)
1(□16)+5(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
6(□16)
6(□16)
6(□16)
6(□16)
1(□20)+5(□16)
X-axis (mm)1(□20)+5(□16)
1(□20)+5(□16)
X-axis (mm)1(□20)+5(□16)
End face machining tools
End face machining tools
4(ER11)
4(ER11)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER20)
4(ER20)
4(ER20)
4(ER20)
4(ER20)
4(ER20)
4(ER20)
4(ER20)
Radial live tools
Radial live tools
4(ER11)
4(ER11)
2(ER11)+2(ER16)
2(ER11)+2(ER16)
2(ER11)+2(ER16)
2(ER11)+2(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
1(ER20)+3(ER16)
1(ER20)+3(ER16)
1(ER20)+3(ER16)
1(ER20)+3(ER16)
1(ER20)+3(ER16)
1(ER20)+3(ER16)
1(ER20)+3(ER16)
1(ER20)+3(ER16)
Deep hole tool holder
Deep hole tool holder
4(ER11)
4(ER11)
4(ER16)+1(Φ20)
4(ER16)+1(Φ20)
4(ER16)+1(Φ20)
4(ER16)+1(Φ20)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
2(ER16)
2(ER16)
2(ER16)
2(ER16)
2(ER16)
2(ER16)
2(ER16)
2(ER16)
Back machining tools
Back machining tools
--
--
--
--
--
--
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
Back powered tool
Back powered tool
--
--
--
--
--
--
Optional
Optional
4(ER16)
4(ER16)
Optional
Optional
4(ER16)
4(ER16)
Optional
Optional
4(ER16)
4(ER16)
Optional
Optional
4(ER16)
4(ER16)
Back turning tool holder
Back turning tool holder
--
--
--
--
--
--
none
none
2(□16, optional)
2(□16, optional)
none
none
2(□16, optional)
2(□16, optional)
--
--
--
--
--
--
--
--
Motor power
Motor power
Spindle (kw)
Spindle (hp)
1.5
2.01
4.2
5.63
4.2
5.63
4.2
5.63
4.2
5.63
4.2
5.63
4.2
5.63
6.3
8.45
6.3
8.45
6.3
8.45
6.3
8.45
Back spindle (kw)
Back spindle (hp)
1.5
2.01
3.1
4.16
3.1
4.16
4.2
5.63
4.2
5.63
4.2
5.63
4.2
5.63
4.2
5.63
4.2
5.63
4.2
5.63
4.2
5.63
Linear drive shaft (kw)
Linear drive shaft (hp)
0.75
1.01
1 (X1, X2, Y1, Z1) 0.75(Z2)
1.34 (X1.34, X2.68, Y1.34, Z1.34) 1.01(Z2.68)
1 (X1, X2, Y1, Z1) 0.75(Z2)
1.34 (X1.34, X2.68, Y1.34, Z1.34) 1.01(Z2.68)
1(Siemens: 0.94)
1.34(Siemens: 1.26)
1(Siemens: 0.94)
1.34(Siemens: 1.26)
1(Siemens: 0.94)
1.34(Siemens: 1.26)
1(Siemens: 0.94)
1.34(Siemens: 1.26)
1.1(X1, X2, Y1, Z1, Z2)
1.48(X1.34, X2.68, Y1.34, Z1.34, Z2.68)
1.1(X1, X2, Y1, Z1, Z2)
1.48(X1.34, X2.68, Y1.34, Z1.34, Z2.68)
1.1(X1, X2, Y1, Z1, Z2)
1.48(X1.34, X2.68, Y1.34, Z1.34, Z2.68)
1.1(X1, X2, Y1, Z1, Z2)
1.48(X1.34, X2.68, Y1.34, Z1.34, Z2.68)
Radial live tool (kw)
Radial live tool (hp)
0.75
1.01
1
1.34
1
1.34
1(Siemens: 0.94)
1.34(Siemens: 1.26)
1(Siemens: 0.94)
1.34(Siemens: 1.26)
1(Siemens: 0.94)
1.34(Siemens: 1.26)
1(Siemens: 0.94)
1.34(Siemens: 1.26)
1.1
1.48
1.1
1.48
1.1
1.48
1.1
1.48
Back live tool (kw)
Back live tool (hp)
0.75
1.01
0.75
1.01
0.75
1.01
1(Siemens:0.94)(Optional)
1.34(Siemens:1.26)(Optional)
1(Siemens:0.94)
1.34(Siemens:1.26)
1(Siemens:0.94)(Optional)
1.34(Siemens:1.26)(Optional)
1(Siemens:0.94)
1.34(Siemens:1.26)
1(optional)
1.34(optional)
1
1.34
1(optional)
1.34(optional)
1
1.34
Cooling pump (kw)
Cooling pump (hp)
0.25
0.34
0.4
0.54
0.4
0.54
0.4
0.54
0.4
0.54
0.4
0.54
0.4
0.54
0.4
0.54
0.4
0.54
0.4
0.54
0.4
0.54
Weight and size
Weight and size
Weight (kg)
Weight (lb)
1800
3968
2400
5291
2400
5291
2900
6393
3000
6614
2900
6393
3000
6614
3750
8267
3750
8267
3750
8267
3750
8267
Size (mm)
Size (in)
2100×1100×1700
82.68×43.31×66.93
2380×1300×1770
93.70×51.18×69.69
2380×1300×1770
93.70×51.18×69.69
2565×1350×1850
100.98×53.15×72.83
2565×1350×1850
100.98×53.15×72.83
2565×1350×1850
100.98×53.15×72.83
2565×1350×1850
100.98×53.15×72.83
2960×1660×1920
116.54×65.35×75.59
2960×1660×1920
116.54×65.35×75.59
3100×1660×1920
122.05×65.35×75.59
3100×1660×1920
122.05×65.35×75.59
Technical Specifications
G3 L326
G3 L385
G3 L386
Processing capabilities
Maximum processing bar diameter(mm)
Φ32
Φ38
Φ38
Spindle through hole diameter(mm)
Φ37
Φ39
Φ39
Maximum processing length(mm) &(inch) (No guide bushing)
2.5D(maximum 80)
2.5D(maximum 90)
2.5D(maximum 90)
Maximum processing length(mm) &(inch) (Fixed guide sleeve)
--
--
--
Maximum processing length(mm) &(inch) (Rotary guide sleeve)
310
310
310
Maximum clamping diameter of back spindle(mm)
Φ32
Φ38
Φ38
Maximum drilling diameter of spindle(mm)
Φ13
Φ13
Φ13
Maximum tapping diameter of spindle
M12
M12
M12
Maximum drilling diameter of back spindle(mm)
Φ10
Φ10
Φ10
Maximum tapping diameter of back spindle
M10
M10
M10
Maximum drilling diameter of radial live tool(mm)
Φ10
Φ10
Φ10
Maximum tapping diameter of radial live tool
M8
M8
M8
Maximum drilling diameter of back powered tool(mm)
Φ8
Φ8(optional)
Φ8
Maximum tapping diameter of back powered tool
M6
M6(optional)
M6
Mechanical capabilities
Spindle speed(r/min)
8000(rotary guide sleeve 6000)
6000(rotary cylinder)
6000(rotary cylinder)
Back spindle speed(r/min)
8000
8000
8000
Radial live tool speed(r/min)
6000
6000
6000
Back live tool speed(r/min)
6000
6000(optional)
6000
Rapid moving speed(m/min)
30(X2, Y1, Z1, Z2)
30(X2, Y1, Z1, Z2)
30(X2, Y1, Z1, Z2)
Rapid moving speed(m/min)
24(X1, Y2)
24(X1, Z1)
24(X1, Y2, Z1)
Spindle runout(mm)
≤0.002
≤0.002
≤0.002
Repeat positioning accuracy(mm)
≤0.003
≤0.003
≤0.003
Tool system
External cylindrical tools
6(□16)
1(□20)+5(□16)
1(□20)+5(□16)
End face machining tools
4(ER20)
4(ER20)
4(ER20)
Radial live tools
1(ER20)+3(ER16)
1(ER20)+3(ER16)
1(ER20)+3(ER16)
Deep hole tool holder
2(ER16)
2(ER16)
2(ER16)
Back machining tools
4(ER16)
4(ER16)
4(ER16)
Back powered tool
4(ER16)
Optional
4(ER16)
Back turning tool holder
--
--
--
Motor power
Spindle(kw)
6.3
6.3
6.3
Back spindle(kw)
4.2
4.2
4.2
Linear drive shaft(kw)
1.1(X1, X2, Y1, Z1, Z2)
1.1(X1, X2, Y1, Z1, Z2)
1.1(X1, X2, Y1, Z1, Z2)
Radial live tool(kw)
1.1
1.1
1.1
Back live tool(kw)
1
1(optional)
1
Cooling pump(kw)
0.4
0.4
0.4
Weight and size
Weight (kg)
3750
3750
3750
Size (mm)
2960x1660x1920
3100x1660x1920
3100x1660x1920
